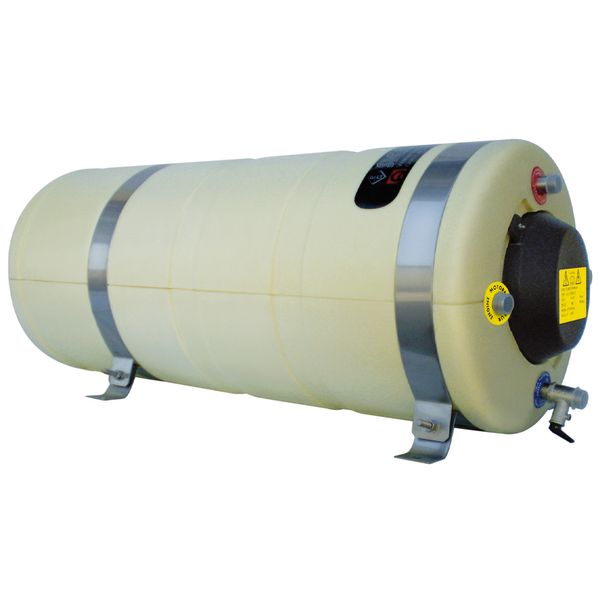

Quick Termoinox Calorifier Vertical / Horizontal (60L / 800W / SS)
Part No: 9-93026
Quick calorifier with a capacity of 60 Litres and a wattage of 800W. This Sigmar Marine Termoinox calorifier is constructed with high quality materials specially designed for marine use. The tank and heat exchanger are made from AISI 316 stainless steel with 20mm thermal insulating polyurethane foam and stainless steel brackets.
The calorifier is suitable for vertical or horizontal installation to the bulkhead, deck-head or floor.
This calorifier produces hot water from the Incoloy electric heating element. Also featuring a safety / non-return valve that allows discharging of the water heater in case of disuse, set at 6 bar (±1).
This Boiler comes with a regulating thermostat with double safety and 1/2" engine and water fittings.
2 year warranty
Each unit tested & with own identifiable number for warranty
Highly efficient design, graphic confirmation available
220V Mains electrical immersion heater, thermostatically controlled
Simple to fit with easy to identify connections & instruction manual
Approvals
CE
Capacity Description
60 Litres (15.8 US Gallons)
Length
890mm
Material
Stainless Steel AISI 316 Heat Exchanger & Tank, High-Density Polyurethane Foam Tank Lining / Heat Insulation, Incoloy Electric Heating Element
Type
Calorifiers
Voltage Description
220V AC
Wattage
800W
Weight
16kg
Working Pressure
5 bar (500 kPa)
Brand
Quick
Primary Construction
Stainless Steel 316
Calorifier Coil
Single
Country of Origin
United Kingdom
Warranty
2 Years
Connections Description
Engine & Water: 1/2" BSP ISO 228 Thread
Diameter Description
355mm (14")
Model
B060 UT
Pressure Rating
Pressure Tested at: 5 bar (500 kPa), Safety Valve: 6 bar
Share
View full details
Quick Termoinox Calorifier Vertical / Horizontal (60L / 800W / SS)
Part No: 9-93026
Quick calorifier with a capacity of 60 Litres and a wattage of 800W. This Sigmar Marine Termoinox calorifier is constructed with high quality materials specially designed for marine use. The tank and heat exchanger are made from AISI 316 stainless steel with 20mm thermal insulating polyurethane foam and stainless steel brackets.
The calorifier is suitable for vertical or horizontal installation to the bulkhead, deck-head or floor.
This calorifier produces hot water from the Incoloy electric heating element. Also featuring a safety / non-return valve that allows discharging of the water heater in case of disuse, set at 6 bar (±1).
This Boiler comes with a regulating thermostat with double safety and 1/2" engine and water fittings.
2 year warranty
Each unit tested & with own identifiable number for warranty
Highly efficient design, graphic confirmation available
220V Mains electrical immersion heater, thermostatically controlled
Simple to fit with easy to identify connections & instruction manual
| Approvals | CE |
| Capacity Description | 60 Litres (15.8 US Gallons) |
| Length | 890mm |
| Material | Stainless Steel AISI 316 Heat Exchanger & Tank, High-Density Polyurethane Foam Tank Lining / Heat Insulation, Incoloy Electric Heating Element |
| Type | Calorifiers |
| Voltage Description | 220V AC |
| Wattage | 800W |
| Weight | 16kg |
| Working Pressure | 5 bar (500 kPa) |
| Brand | Quick |
| Primary Construction | Stainless Steel 316 |
| Calorifier Coil | Single |
| Country of Origin | United Kingdom |
| Warranty | 2 Years |
| Connections Description | Engine & Water: 1/2" BSP ISO 228 Thread |
| Diameter Description | 355mm (14") |
| Model | B060 UT |
| Pressure Rating | Pressure Tested at: 5 bar (500 kPa), Safety Valve: 6 bar |
