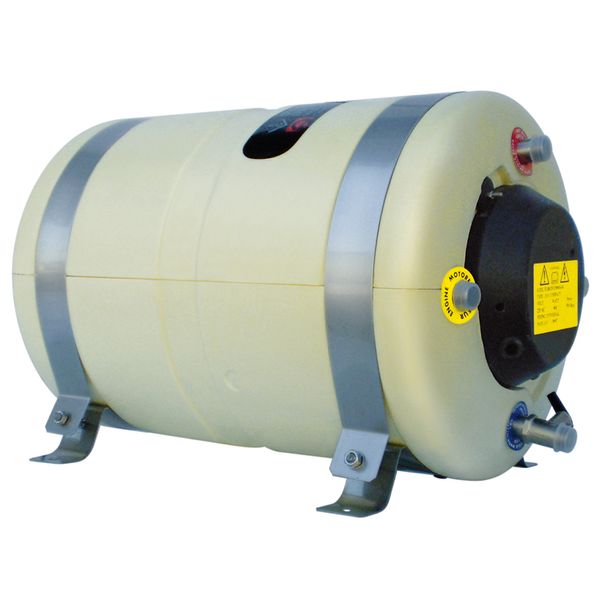

Quick Termoinox Calorifier Vertical / Horizontal (30L / 800W / SS)

Quick Termoinox Calorifier Vertical / Horizontal (30L / 800W / SS)

Regular price £916.13 GBP
Regular price Sale price £916.13 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Quick Termoinox Calorifier Vertical / Horizontal (40L / 800W / SS)

Part No: 9-93023

Quick calorifier with a capacity of 30 Litres and a wattage of 800W. This Sigmar Marine Termoinox calorifier is constructed with high quality materials specially designed for marine use. The tank and heat exchanger are made from AISI 316 stainless steel with 20mm thermal insulating polyurethane foam and stainless steel brackets.

The calorifier is suitable for vertical or horizontal installation to the bulkhead, deck-head or floor.

This calorifier produces hot water from the Incoloy electric heating element. Also featuring a safety / non-return valve that allows discharging of the water heater in case of disuse, set at 6 bar (±1).

This Boiler comes with a regulating thermostat with double safety and 1/2" engine and water fittings.

2 year warranty

Each unit tested & with own identifiable number for warranty

Highly efficient design, graphic confirmation available

220V Mains electrical immersion heater, thermostatically controlled

Simple to fit with easy to identify connections & instruction manual

Approvals CE
Capacity Description 30 Litres (7.9 US Gallons)
Length 560mm
Material Stainless Steel AISI 316 Heat Exchanger & Tank, High-Density Polyurethane Foam Tank Lining / Heat Insulation, Incoloy Electric Heating Element
Type Calorifiers
Voltage Description 220V AC
Wattage 800W
Weight 12kg
Working Pressure 5 bar (500 kPa)
Brand Quick
Primary Construction Stainless Steel 316
Calorifier Coil Single
Country of Origin United Kingdom
Warranty 2 Years
Connections Description Engine & Water: 1/2" BSP ISO 228 Thread
Diameter Description 355mm (14")
Model B030 UT
Pressure Rating Pressure Tested at: 5 bar (500 kPa), Safety Valve: 6 bar
