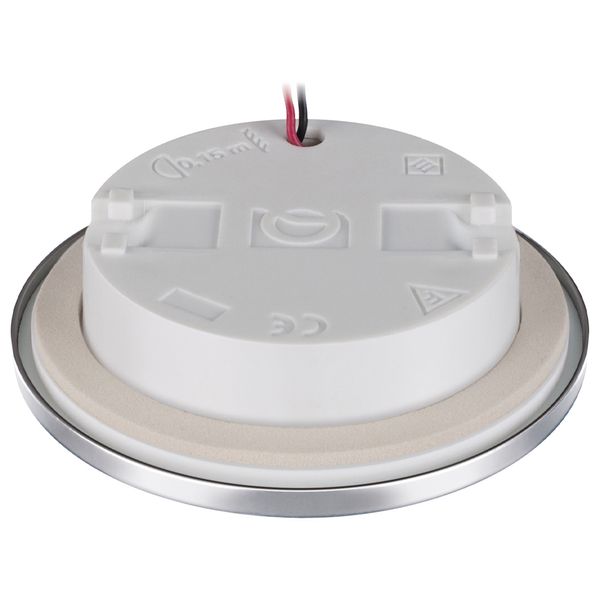

Quick Ted LED Downlight White 12/24V Daylight White (Screw Fit)

Part No: 8-10430

An LED downlight from the Quick Ted range made from 16 AISI stainless steel with a white frame and an anti-shock material diffuser. This light is ideal for both ceiling and wall installation.

Specs:

• Power type: Constant voltage

• Light source: High luminosity LED

• Supply: 10 - 30V

• Power consumption: 2W

• IP security degree: 66

• Dimmable: Yes

• Light colour: Daylight 3800-4100 K

• Light flow: 125 lm

Dimensions

• Frame diameter: 72mm (2 53/74")

• Recess: 16mm (5/8")

• Cut-out diameter: 54mm (2 1/8")



Approvals	III, CE
Case Colour	White
Finish	White
Height Description	22mm
Rating	IP66
Series	Ted
Voltage Description	10V - 30V DC
Wattage	2W
Width	72mm
Brand	Quick
Dimmable	Yes
Bulb	LED
Primary Construction	Stainless Steel
Switched	No
Bulb Description	LED
Diameter Description	Frame: 72mm
Fixing	Screws
Fixing Hole Size	54mm
Lifetime	50,000 hours
Light Colour	Daylight White
Light Output	125 Lumens
Mounting Description	Ceiling or Wall
Amps Description	0.09A @ 24V
Depth	72mm
