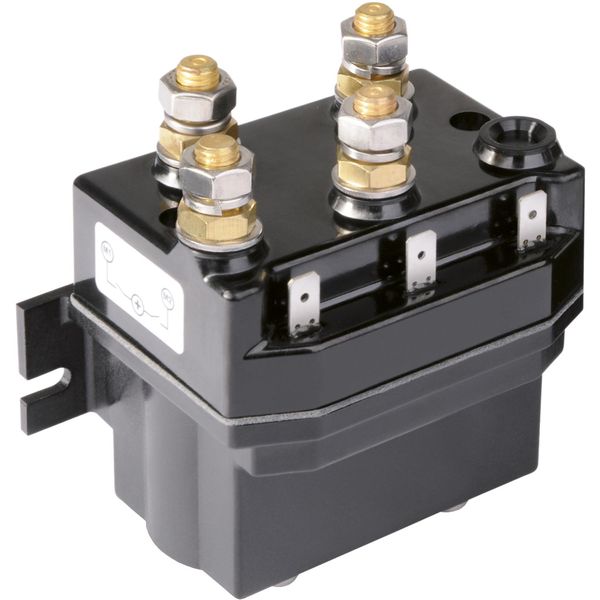

Quick T6415-12 Reversing Contactor (12V / IP66)
Part No: Q-RCT641512
The Quick reversing contactor unit T6415-12 is suitable to operate 12V windlass and capstan electric motors. The reversing contactor is extremely easy to install due to it's external connections. Quick reversing contactor features IP66 protection (excluding the terminals).
Fuse
Recommended: 2.5A Fast
Height Description
Excluding Terminals: 83.5mm (3-9/32"), Terminals: 23.1mm (29/32"), Bracket: 29mm (1-9/64")
Voltage Description
12V DC
Wattage
2500W
Weight
980g (2.16 lb)
Width
100.3mm (3-61/64"), Excluding Mounting Bracket 82.5mm (3-1/4")
Brand
Quick
Dimensions
Distance Between Mounting Hole Centres: 86mm (3-3/8")
Amps Description
Interruption Capacity: 800A at 48V DC, Working Intermittent Current (50% of work cycle): 150A
Depth
66.5mm (2-5/8"), Excluding Mounting Bracket: 61.3mm (2-13/32")
Share
View full details
Quick T6415-12 Reversing Contactor (12V / IP66)
Part No: Q-RCT641512
The Quick reversing contactor unit T6415-12 is suitable to operate 12V windlass and capstan electric motors. The reversing contactor is extremely easy to install due to it's external connections. Quick reversing contactor features IP66 protection (excluding the terminals).
| Fuse | Recommended: 2.5A Fast |
| Height Description | Excluding Terminals: 83.5mm (3-9/32"), Terminals: 23.1mm (29/32"), Bracket: 29mm (1-9/64") |
| Voltage Description | 12V DC |
| Wattage | 2500W |
| Weight | 980g (2.16 lb) |
| Width | 100.3mm (3-61/64"), Excluding Mounting Bracket 82.5mm (3-1/4") |
| Brand | Quick |
| Dimensions | Distance Between Mounting Hole Centres: 86mm (3-3/8") |
| Amps Description | Interruption Capacity: 800A at 48V DC, Working Intermittent Current (50% of work cycle): 150A |
| Depth | 66.5mm (2-5/8"), Excluding Mounting Bracket: 61.3mm (2-13/32") |
