Quick T6215-12 Contactor Unit (12V / 150A / IP66)
Quick T6215-12 Contactor Unit (12V / 150A / IP66)
Regular price
£79.62 GBP
Regular price
Sale price
£79.62 GBP
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability

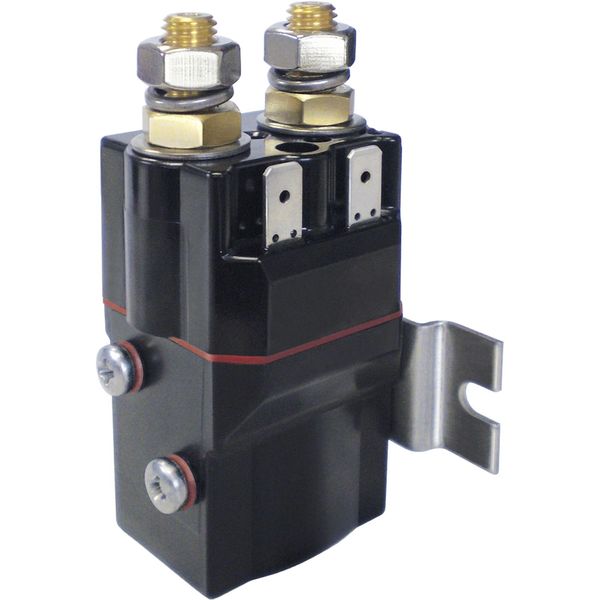

Quick T6215-12 Contactor Unit (12V / 150A / IP66)
Part No: Q-FTT621512000A00
The Quick contactor unit T6215-12 is suitable to operate 12V windlass electric motors and capstans up to 150 amps. The contactor is extremely easy to install due to it's external connections. Quick T6215 contactor features IP66 protection (excluding the terminals).
| Height Description | 84.5mm (3-21/64"), Bracket: 22.2mm (7/8") |
| Voltage Description | Coil: 12V DC, Contact: 48V DC Maximum |
| Wattage | 2500W |
| Weight | 240g (0.53 lb) |
| Width | 64mm (2-33/64"), Excluding Mounting Bracket 32.8mm (1-19/64") |
| Brand | Quick |
| Dimensions | Distance Between Mounting Hole Centres: 48.7mm (1-59/64") |
| Amps Description | Interruption Capacity: 500A at 48V DC, Working Intermittent Current (50% of work cycle): 150A |
| Depth | 45mm (1-49/64"), Excluding Mounting Bracket: 35mm (1-3/8") |
