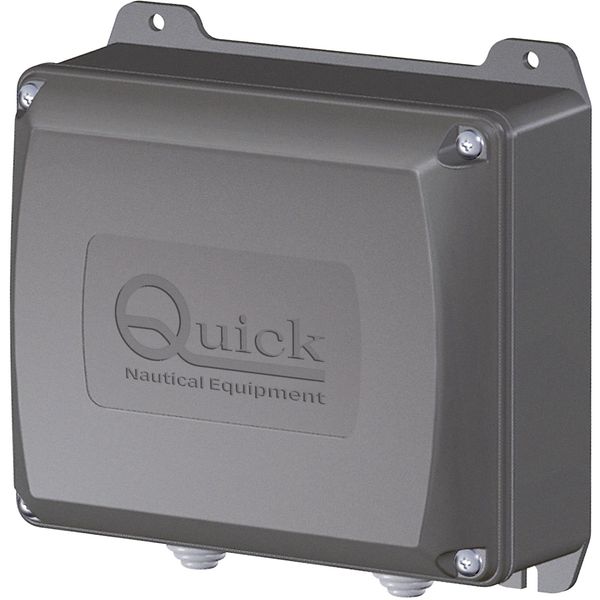

Quick RRC R04 Radio Control Receiver with 4 Relays (434Mhz)
Quick RRC R04 Radio Control Receiver with 4 Relays (434Mhz)
Couldn't load pickup availability
Quick RRC R04 Radio Control Receiver with 4 Relays (434Mhz)
Part No: Q-RRCR04
Quick RRC Radio control receiver R04 is a device that is used with an RRC radio transmitter and is suitable for controlling leisure craft devices or accessories.
The radio remote control receiver can connect to the Q-RRCEA81 external antenna (supplied separately) to increase the working range.
Features:
Full power range (from 10.5 to 31Vdc).
Microcontroller-operated functions.
FSK modulation.
Operating temperatures from -15°C to +70°C.
Indication of the system operating status, errors and problems by means of LED and seven-segment display.
Protection against polarity inversion.
Protection against low battery.
50 transmitters can be stored.
Translation mode to activate more receivers, installed in different spots, by means of one transmitter.
Programmable digital filter.
| Approvals | CE, Complies to Directive 1999/5/CE (R&TTE) |
| Height Description | Overall: 141.7mm (5-37/64"), Excl. Mounting Bracket: 123mm (4-27/32") |
| Operating Temperature | -15°C to +70°C |
| Voltage Description | 12V, 24V DC (10.5V - 31V DC) |
| Width | 143mm (5-5/8") |
| Brand | Quick |
| Dimensions | Distance Between Mounting Holes: 108mm x 132mm (4-1/4" x 5-13/64") |
| Frequency Description | 434.420 Mhz |
| Amps Description | Carrying Capacity: 15A, Power Absorption in Stand-By: 25mA |
| Depth | 61.4mm (2-27/64") |
