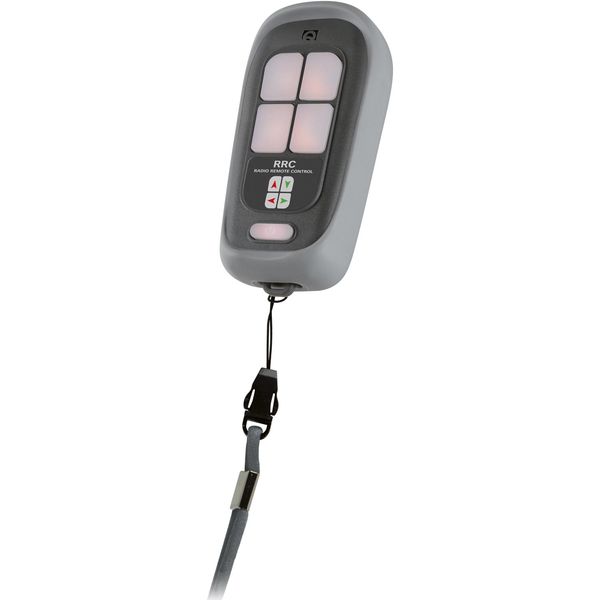

Quick RRC H04 TX Handheld Remote Control (4 Buttons / 434Mhz)
Part No: Q-RRCH04
Quick RRC handheld radio transmitter H04 is a device that is used with an RRC radio receiver and is suitable for controlling leisure craft devices or accessories. This handheld remote control has 4 buttons (up, down, left and right).
Features:
Microcontroller-operated functions.
FSK modulation.
Operating temperatures from -15°C to +70°C.
Can control more receivers with one transmitter.
Two functions can be activated at the same time.
Floating.
Also works with rechargeable batteries.
LED Keyboard backlighting.
Approvals
CE, Complies to Directive 1999/5/CE (R&TTE), 2014/53/EU (RED)
Height Description
Overall: 119mm (4-11/16"), Excluding Lanyard Loop: 116mm (4-9/16")
Operating Temperature
-15°C to +70°C
Voltage Description
3x Alkaline AAA Batteries or 3x NiMH Rechargeable Batteries
Width
61mm (2-13/32")
Brand
Quick
Contents
Handheld Radio Transmitter, Batteries, Protective Case, Lanyard, Conditions of Warranty, Installation and User Manual
Frequency Description
434.420 Mhz
Amps Description
During Transmission: 16mA
Depth
35mm (1-3/8")
Share
View full details
Quick RRC H04 TX Handheld Remote Control (4 Buttons / 434Mhz)
Part No: Q-RRCH04
Quick RRC handheld radio transmitter H04 is a device that is used with an RRC radio receiver and is suitable for controlling leisure craft devices or accessories. This handheld remote control has 4 buttons (up, down, left and right).
Features:
Microcontroller-operated functions.
FSK modulation.
Operating temperatures from -15°C to +70°C.
Can control more receivers with one transmitter.
Two functions can be activated at the same time.
Floating.
Also works with rechargeable batteries.
LED Keyboard backlighting.
| Approvals | CE, Complies to Directive 1999/5/CE (R&TTE), 2014/53/EU (RED) |
| Height Description | Overall: 119mm (4-11/16"), Excluding Lanyard Loop: 116mm (4-9/16") |
| Operating Temperature | -15°C to +70°C |
| Voltage Description | 3x Alkaline AAA Batteries or 3x NiMH Rechargeable Batteries |
| Width | 61mm (2-13/32") |
| Brand | Quick |
| Contents | Handheld Radio Transmitter, Batteries, Protective Case, Lanyard, Conditions of Warranty, Installation and User Manual |
| Frequency Description | 434.420 Mhz |
| Amps Description | During Transmission: 16mA |
| Depth | 35mm (1-3/8") |
