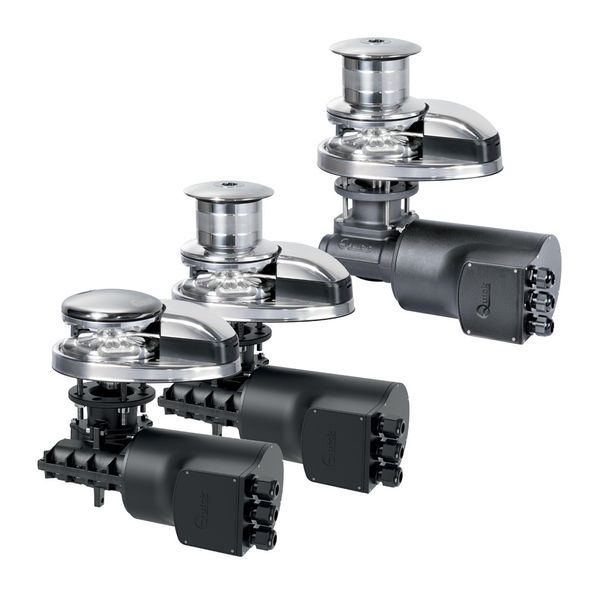

Quick DP3 1012D Windlass Gypsy & Drum Mk2 (1000W / 12V / 10mm)
Quick DP3 1012D Windlass Gypsy & Drum Mk2 (1000W / 12V / 10mm)
Regular price
£2,563.07 GBP
Regular price
£2,135.89 GBP
Sale price
£2,563.07 GBP
Taxes included.
Shipping calculated at checkout.
Limited Stock - Call 01484 482269
Part No: Q2DP3191204
The Quick DP3 Prince 1012D vertical windlass is suitable for boats from 10m to 14m (33 to 46ft). The vertical mount windlass is easy to install with an AISI 316 Stainless Steel base and fitted with the new 100% recyclable techno-polymer gearbox. Featuring an integrated sensor and magnet for chain counter and a manual free-fall system. The Quick windlass features a 10mm (3/8") gypsy which is suitable for 10mm ISO chain and a 5/8" rope. This version also comes with a drum attached.
Fuse
80A Protection Circuit Breaker
Height Description
319.4mm (12-37/64")
Series
Prince DP3
Size
Motor Cable: 35mm2 (AWG2)
Type
Vertical Windlass
Voltage Description
12V DC
Wattage
Motor Power: 1000W
Weight
19.4kg (42lb) without drum
Brand
Quick
Primary Construction
Stainless Steel
Suitable For
Chain and Rope
Maximum Pull Load
1000kg (2205 lb)
Contents
Contactor Units, Nylon Handle, Drilling Template, User Manual
Model
1012D Mk2
Replaces
Quick FSDP31012D10A00
Boat Size
10 to 14 metres in length
Gypsy Size
10mm
Amps Description
Current Absorbtion At Working Load: 140A
Depth
233.5mm (9-3/16")
Share
View full details
Part No: Q2DP3191204
The Quick DP3 Prince 1012D vertical windlass is suitable for boats from 10m to 14m (33 to 46ft). The vertical mount windlass is easy to install with an AISI 316 Stainless Steel base and fitted with the new 100% recyclable techno-polymer gearbox. Featuring an integrated sensor and magnet for chain counter and a manual free-fall system. The Quick windlass features a 10mm (3/8") gypsy which is suitable for 10mm ISO chain and a 5/8" rope. This version also comes with a drum attached.
| Fuse | 80A Protection Circuit Breaker |
| Height Description | 319.4mm (12-37/64") |
| Series | Prince DP3 |
| Size | Motor Cable: 35mm2 (AWG2) |
| Type | Vertical Windlass |
| Voltage Description | 12V DC |
| Wattage | Motor Power: 1000W |
| Weight | 19.4kg (42lb) without drum |
| Brand | Quick |
| Primary Construction | Stainless Steel |
| Suitable For | Chain and Rope |
| Maximum Pull Load | 1000kg (2205 lb) |
| Contents | Contactor Units, Nylon Handle, Drilling Template, User Manual |
| Model | 1012D Mk2 |
| Replaces | Quick FSDP31012D10A00 |
| Boat Size | 10 to 14 metres in length |
| Gypsy Size | 10mm |
| Amps Description | Current Absorbtion At Working Load: 140A |
| Depth | 233.5mm (9-3/16") |
