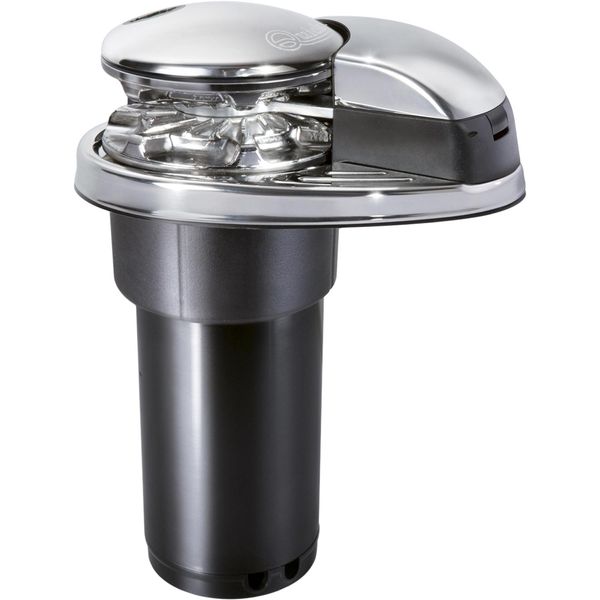

Quick DP2E 600 Windlass Kit (8mm / 12V)
Quick DP2E 600 Windlass Kit (8mm / 12V)
Regular price
£2,305.31 GBP
Regular price
£1,921.09 GBP
Sale price
£2,305.31 GBP
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Limited Stock - Call 01484 482269
Quick DP2E 600 Windlass Kit (8mm / 12V)
Part No: Q-DP2E091103K
The Quick DP2E Prince 600 vertical windlass is suitable for boats from 6m to 10m (20 to 33ft). The vertical mount windlass is easy to install with an AISI 316 Stainless Steel base. Featuring an integrated sensor and magnet for chain counter and a manual free-fall system. The Quick windlass features a 8mm (5/16") gypsy which is suitable for 8mm ISO chain and a 1/2" rope. This is the kit version of the 600, this kit includes a contactor unit, nylon handle, foot switch and a hydraulic magnetic circuit breaker.
Fuse
50A Protection Circuit Breaker
Height Description
287.5mm (11-5/16")
Series
Prince DP2E
Size
Motor Cable: 16mm2 (AWG5)
Voltage Description
12V DC
Wattage
Motor Power: 500W
Width
196mm (7-23/32")
Brand
Quick
Primary Construction
Stainless Steel
Suitable For
Chain and Rope
Maximum Pull Load
620kg (1366.9 lb)
Contents
Contactor Units, Nylon Handle, Foot Switch, Hydraulic Magnetic Circuit Breaker, Drilling Template, User Manual
Model
600
Boat Size
6 to 10 metres in length
Gypsy Size
8mm
Amps Description
Current Absorbtion At Working Load: 60A
Depth
145.4mm (5-23/32")
Share
View full details
Quick DP2E 600 Windlass Kit (8mm / 12V)
Part No: Q-DP2E091103K
The Quick DP2E Prince 600 vertical windlass is suitable for boats from 6m to 10m (20 to 33ft). The vertical mount windlass is easy to install with an AISI 316 Stainless Steel base. Featuring an integrated sensor and magnet for chain counter and a manual free-fall system. The Quick windlass features a 8mm (5/16") gypsy which is suitable for 8mm ISO chain and a 1/2" rope. This is the kit version of the 600, this kit includes a contactor unit, nylon handle, foot switch and a hydraulic magnetic circuit breaker.
| Fuse | 50A Protection Circuit Breaker |
| Height Description | 287.5mm (11-5/16") |
| Series | Prince DP2E |
| Size | Motor Cable: 16mm2 (AWG5) |
| Voltage Description | 12V DC |
| Wattage | Motor Power: 500W |
| Width | 196mm (7-23/32") |
| Brand | Quick |
| Primary Construction | Stainless Steel |
| Suitable For | Chain and Rope |
| Maximum Pull Load | 620kg (1366.9 lb) |
| Contents | Contactor Units, Nylon Handle, Foot Switch, Hydraulic Magnetic Circuit Breaker, Drilling Template, User Manual |
| Model | 600 |
| Boat Size | 6 to 10 metres in length |
| Gypsy Size | 8mm |
| Amps Description | Current Absorbtion At Working Load: 60A |
| Depth | 145.4mm (5-23/32") |
