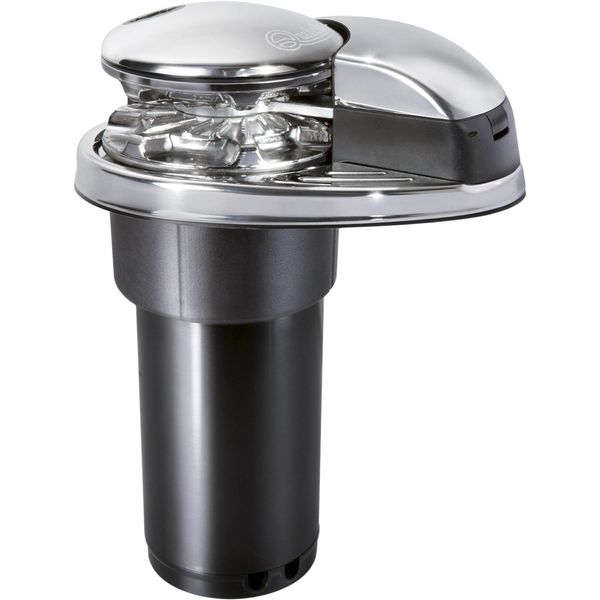

Quick DP2E 1100 Windlass Gypsy Only (800W / 24V / 8mm)
Quick DP2E 1100 Windlass Gypsy Only (800W / 24V / 8mm)
Regular price
£2,448.35 GBP
Regular price
£2,040.29 GBP
Sale price
£2,448.35 GBP
Taxes included.
Shipping calculated at checkout.
Limited Stock - Call 01484 482269
Part No: Q-DP2E153103
The Quick DP2E Prince 1100 vertical windlass is suitable for boats from 7m to 12m (23 to 40ft). The vertical mount windlass is easy to install with an AISI 316 Stainless Steel base. Featuring an integrated sensor and magnet for chain counter and a manual free-fall system. The Quick windlass features a 8mm (5/16") gypsy which is suitable for 8mm ISO chain and a 1/2" rope.
Fuse
40A Protection Circuit Breaker
Height Description
287.5mm (11-5/16")
Series
Prince DP2E
Size
Motor Cable: 10mm2 (AWG7)
Type
Vertical Windlass
Voltage Description
24V DC
Wattage
Motor Power: 800W
Width
196mm (7-23/32")
Brand
Quick
Primary Construction
Stainless Steel
Suitable For
Chain and Rope
Maximum Pull Load
820kg (1807.8 lb)
Contents
Contactor Units, Nylon Handle, Drilling Template, User Manual
Model
1100
Boat Size
7 to 12 metres in length
Gypsy Size
8mm
Amps Description
Current Absorbtion At Working Load: 53A
Depth
145.4mm (5-23/32")
Share
View full details
Part No: Q-DP2E153103
The Quick DP2E Prince 1100 vertical windlass is suitable for boats from 7m to 12m (23 to 40ft). The vertical mount windlass is easy to install with an AISI 316 Stainless Steel base. Featuring an integrated sensor and magnet for chain counter and a manual free-fall system. The Quick windlass features a 8mm (5/16") gypsy which is suitable for 8mm ISO chain and a 1/2" rope.
| Fuse | 40A Protection Circuit Breaker |
| Height Description | 287.5mm (11-5/16") |
| Series | Prince DP2E |
| Size | Motor Cable: 10mm2 (AWG7) |
| Type | Vertical Windlass |
| Voltage Description | 24V DC |
| Wattage | Motor Power: 800W |
| Width | 196mm (7-23/32") |
| Brand | Quick |
| Primary Construction | Stainless Steel |
| Suitable For | Chain and Rope |
| Maximum Pull Load | 820kg (1807.8 lb) |
| Contents | Contactor Units, Nylon Handle, Drilling Template, User Manual |
| Model | 1100 |
| Boat Size | 7 to 12 metres in length |
| Gypsy Size | 8mm |
| Amps Description | Current Absorbtion At Working Load: 53A |
| Depth | 145.4mm (5-23/32") |
