Quick DP2E 1000D Windlass Gypsy & Drum (800W / 12V / 6mm)
Quick DP2E 1000D Windlass Gypsy & Drum (800W / 12V / 6mm)
Regular price
£2,071.73 GBP
Regular price
Sale price
£2,071.73 GBP
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability

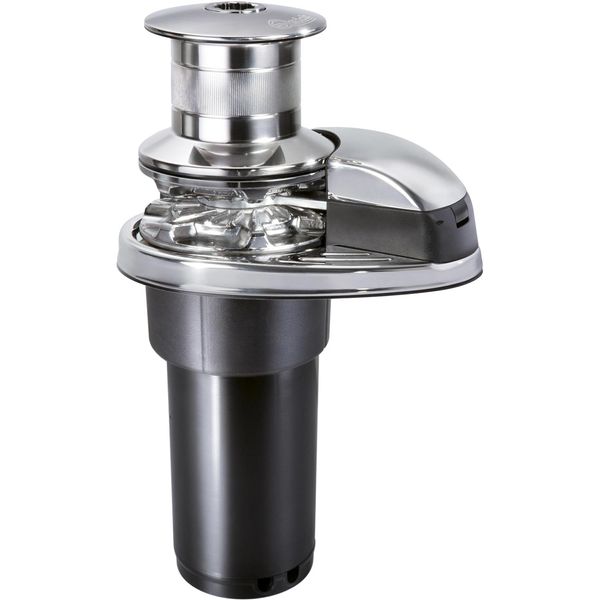

Quick DP2E 1000D Windlass Gypsy & Drum (800W / 12V / 6mm)
Part No: Q-DP2E151201
The Quick DP2E Prince 1000D vertical windlass is suitable for boats from 7m to 12m (23 to 40ft). The vertical mount windlass is easy to install with an AISI 316 Stainless Steel base. Featuring an integrated sensor and magnet for chain counter and a manual free-fall system. The Quick windlass features a 6mm (1/4") gypsy which is suitable for 6mm ISO chain and a 1/2" rope. This version also comes with a drum attached.
| Fuse | 80A Protection Circuit Breaker |
| Height Description | 344.5mm (13-11/64") |
| Series | Prince DP2E |
| Size | Motor Cable: 25mm2 (AWG3) |
| Voltage Description | 12V DC |
| Wattage | Motor Power: 800W |
| Width | 196mm (7-23/32") |
| Brand | Quick |
| Primary Construction | Stainless Steel |
| Suitable For | Chain and Rope |
| Maximum Pull Load | 820kg (1807.8 lb) |
| Contents | Contactor Units, Nylon Handle, Drilling Template, User Manual |
| Model | 1000D |
| Boat Size | 7 to 12 metres in length |
| Gypsy Size | 6mm |
| Amps Description | Current Absorbtion At Working Load: 84A |
| Depth | 145.4mm (5-23/32") |
