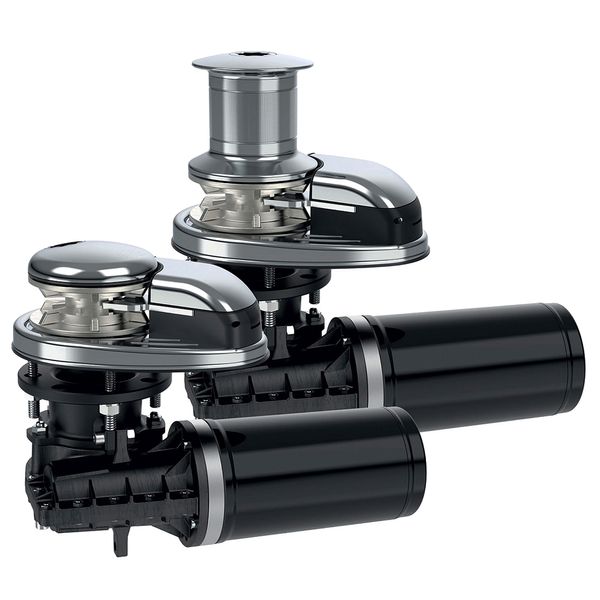

Quick DP2 524D Windlass Gypsy & Drum (500W, 24V, 6mm, Recycle Gearbox)
Part No: Q2DP2093201
The Quick DP2 Prince 524D vertical windlass is suitable for boats from 5m to 9m (16 to 30ft). The vertical mount windlass is easy to install with an AISI 316 Stainless Steel base and fitted with the new 100% recyclable technopolymer gearbox. Featuring an integrated sensor and magnet for chain counter and a manual free-fall system. The Quick windlass features a 6mm (1/4") gypsy which is suitable for 6mm ISO chain and a 1/2" rope. This version also comes with a drum attached.
| Height Description | 261mm (10-9/32") |
| Series | Prince DP2 |
| Voltage Description | 24V DC |
| Wattage | Motor Power: 500W |
| Weight | 9.8kg (21lb) without drum |
| Brand | Quick |
| Primary Construction | Stainless Steel |
| Suitable For | Chain and Rope |
| Maximum Pull Load | 660kg (1455 lb) |
| Contents | Contactor Units, Nylon Handle, Drilling Template, User Manual |
| Model | 524D |
| Boat Size | 5 to 9 metres in length |
| Gypsy Size | 6mm |
| Amps Description | Current Absorbtion At Working Load: 40A |
| Depth | 163mm (6-27/64") |
