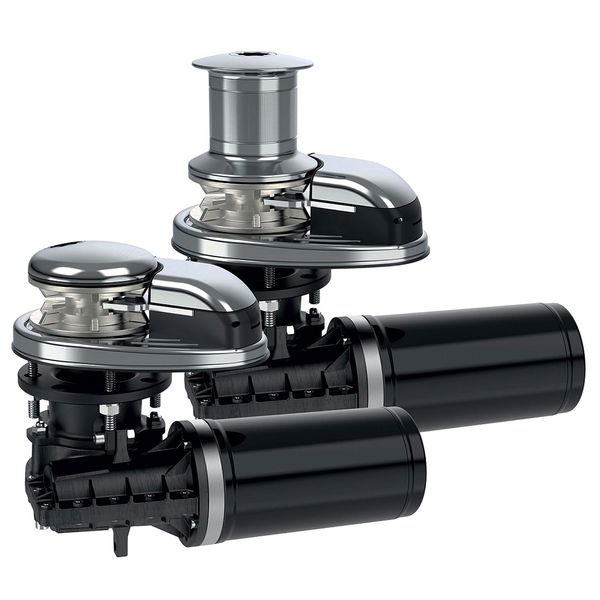

Quick DP2 312D Windlass Gypsy & Drum (300W, 12V, 8mm, Recycle Gearbox)
Part No: Q2DP2051303
The Quick DP2 Prince 312D vertical windlass is suitable for boats from 5m to 7.5m (16 to 25ft). The vertical mount windlass is easy to install with an AISI 316 Stainless Steel base and fitted with the new 100% recyclable technopolymer gearbox. Featuring an integrated sensor and magnet for chain counter and a manual free-fall system. The Quick windlass features a 8mm (5/16") gypsy which is suitable for 8mm ISO chain and a 1/2" rope. This version also comes with a drum attached.
Height Description
261mm (10-9/32")
Series
Prince DP2
Voltage Description
12V DC
Wattage
Motor Power: 300W
Weight
9.8kg (21lb) without drum
Brand
Quick
Primary Construction
Stainless Steel
Suitable For
Chain and Rope
Maximum Pull Load
370kg (814 lb)
Contents
Contactor Units, Nylon Handle, Drilling Template, User Manual
Model
312D
Boat Size
5 to 7.5 metres in length
Gypsy Size
8mm
Amps Description
Current Absorbtion At Working Load: 65A
Depth
163mm (6-27/64")
Share
View full details
Quick DP2 312D Windlass Gypsy & Drum (300W, 12V, 8mm, Recycle Gearbox)
Part No: Q2DP2051303
The Quick DP2 Prince 312D vertical windlass is suitable for boats from 5m to 7.5m (16 to 25ft). The vertical mount windlass is easy to install with an AISI 316 Stainless Steel base and fitted with the new 100% recyclable technopolymer gearbox. Featuring an integrated sensor and magnet for chain counter and a manual free-fall system. The Quick windlass features a 8mm (5/16") gypsy which is suitable for 8mm ISO chain and a 1/2" rope. This version also comes with a drum attached.
| Height Description | 261mm (10-9/32") |
| Series | Prince DP2 |
| Voltage Description | 12V DC |
| Wattage | Motor Power: 300W |
| Weight | 9.8kg (21lb) without drum |
| Brand | Quick |
| Primary Construction | Stainless Steel |
| Suitable For | Chain and Rope |
| Maximum Pull Load | 370kg (814 lb) |
| Contents | Contactor Units, Nylon Handle, Drilling Template, User Manual |
| Model | 312D |
| Boat Size | 5 to 7.5 metres in length |
| Gypsy Size | 8mm |
| Amps Description | Current Absorbtion At Working Load: 65A |
| Depth | 163mm (6-27/64") |
