Quick

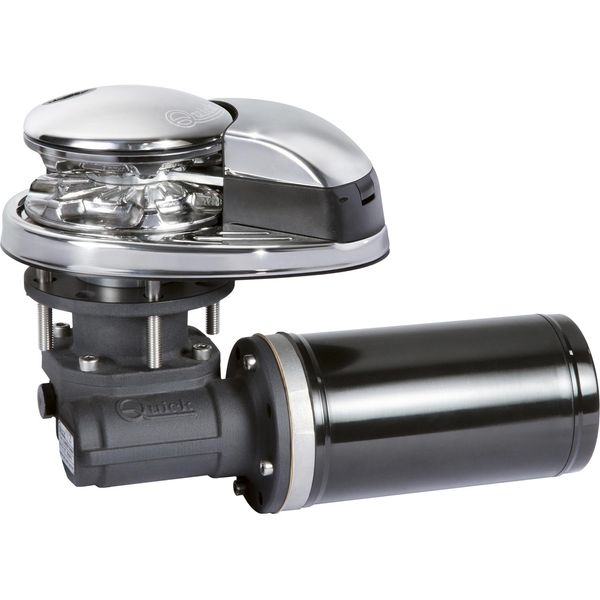

Quick DP2 312 Windlass Gypsy Only (300W / 12V / 6mm)
Quick DP2 312 Windlass Gypsy Only (300W / 12V / 6mm)
Regular price
£1,733.53 GBP
Regular price
£1,444.61 GBP
Sale price
£1,733.53 GBP
Taxes included.
Shipping calculated at checkout.
Limited Stock - Call 01484 482269
Quick DP2 312 Windlass Gypsy Only (300W / 12V / 6mm)
Part No: Q-DP2051101
The Quick DP2 Prince 312 vertical windlass is suitable for boats from 5m to 7.5m (16 to 25ft). The vertical mount windlass is easy to install with an AISI 316 Stainless Steel base. Featuring an integrated sensor and magnet for chain counter and a manual free-fall system. The Quick windlass features a 6mm (1/4") gypsy which is suitable for 6mm ISO chain and a 1/2" rope.
Height Description
204mm (8-1/32")
Series
Prince DP2
Voltage Description
12V DC
Wattage
Motor Power: 300W
Width
284.3mm (11-3/16")
Brand
Quick
Primary Construction
Stainless Steel
Suitable For
Chain and Rope
Maximum Pull Load
370kg (814 lb)
Contents
Contactor Units, Nylon Handle, Drilling Template, User Manual
Model
312
Boat Size
5 to 7.5 metres in length
Gypsy Size
6mm
Amps Description
Current Absorbtion At Working Load: 65A
Depth
163mm (6-27/64")
Share
View full details
Quick DP2 312 Windlass Gypsy Only (300W / 12V / 6mm)
Part No: Q-DP2051101
The Quick DP2 Prince 312 vertical windlass is suitable for boats from 5m to 7.5m (16 to 25ft). The vertical mount windlass is easy to install with an AISI 316 Stainless Steel base. Featuring an integrated sensor and magnet for chain counter and a manual free-fall system. The Quick windlass features a 6mm (1/4") gypsy which is suitable for 6mm ISO chain and a 1/2" rope.
| Height Description | 204mm (8-1/32") |
| Series | Prince DP2 |
| Voltage Description | 12V DC |
| Wattage | Motor Power: 300W |
| Width | 284.3mm (11-3/16") |
| Brand | Quick |
| Primary Construction | Stainless Steel |
| Suitable For | Chain and Rope |
| Maximum Pull Load | 370kg (814 lb) |
| Contents | Contactor Units, Nylon Handle, Drilling Template, User Manual |
| Model | 312 |
| Boat Size | 5 to 7.5 metres in length |
| Gypsy Size | 6mm |
| Amps Description | Current Absorbtion At Working Load: 65A |
| Depth | 163mm (6-27/64") |
