All About Boats

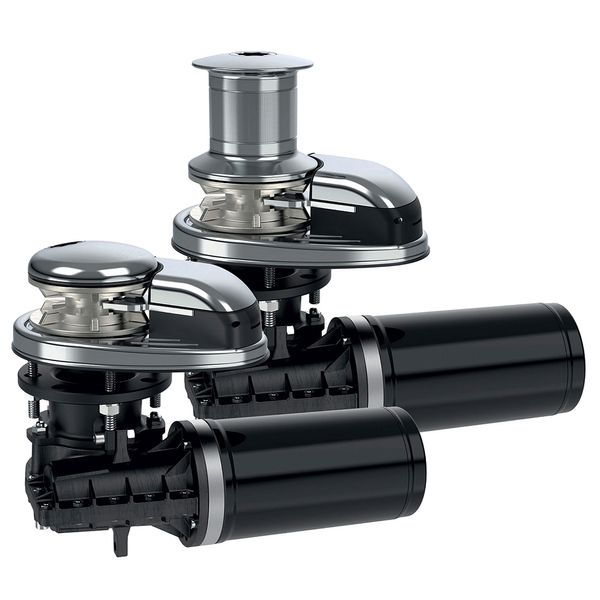

Quick DP2 1012D Windlass Gypsy & Drum (1000W / 12V / 8mm)
Quick DP2 1012D Windlass Gypsy & Drum (1000W / 12V / 8mm)
Regular price
£2,101.22 GBP
Regular price
Sale price
£2,101.22 GBP
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Quick DP2 1012D Windlass Gypsy & Drum (1000W / 12V / 8mm)
Part No: Q2DP2191203
The Quick DP2 Prince 1012D vertical windlass is suitable for boats from 8m to 13m (26 to 43ft). The vertical mount windlass is easy to install with an AISI 316 Stainless Steel base and fitted with the new 100% recyclable technopolymer gearbox. Featuring an integrated sensor and magnet for chain counter and a manual free-fall system. The Quick windlass features a 8mm (5/16") gypsy which is suitable for 8mm ISO chain and a 1/2" rope. This version also comes with a drum attached.
| Height Description | 294.4mm (11-19/32") |
| Series | Prince DP2 |
| Voltage Description | 12V DC |
| Wattage | Motor Power: 1000W |
| Weight | 15.1kg (33lb) without drum |
| Brand | Quick |
| Primary Construction | Stainless Steel |
| Suitable For | Chain and Rope |
| Maximum Pull Load | 930kg (2050 lb) |
| Contents | Contactor Units, Nylon Handle, Drilling Template, User Manual |
| Model | 1012D Mk2 |
| Replaces | Quick FSDP21012D08A00 |
| Boat Size | 8 to 13 metres in length |
| Gypsy Size | 8mm |
| Amps Description | Current Absorbtion At Working Load: 130A |
| Depth | 219.5mm (8-41/64") |
