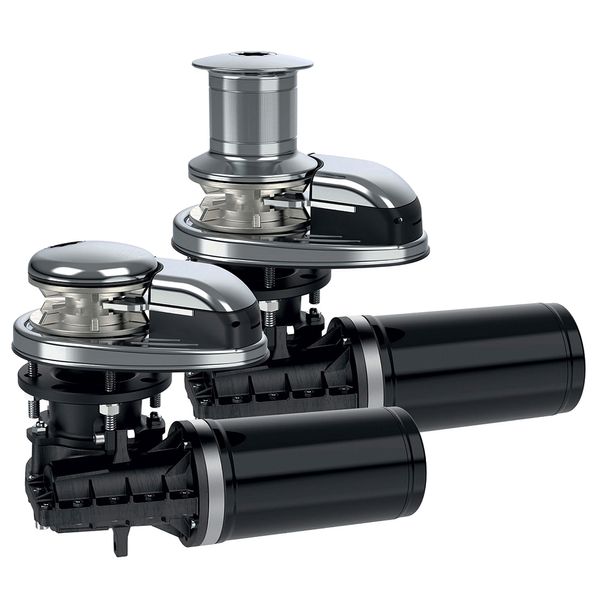

Quick DP2 1012 Windlass Gypsy Only Mk2 (1000W / 12V / 8mm)
Part No: Q2DP2191103
The Quick DP2 Prince 1012 vertical windlass is suitable for boats from 8m to 13m (26 to 43ft). The vertical mount windlass is easy to install with an AISI 316 Stainless Steel base and fitted with the new 100% recyclable technopolymer gearbox. Featuring an integrated sensor and magnet for chain counter and a manual free-fall system. The Quick windlass features a 8mm (5/16") gypsy which is suitable for 8mm ISO chain and a 1/2" rope.
| Height Description | 237.4mm (9-11/32") |
| Series | Prince DP2 |
| Voltage Description | 12V DC |
| Wattage | Motor Power: 1000W |
| Weight | 15.1kg (33lb) |
| Brand | Quick |
| Primary Construction | Stainless Steel |
| Suitable For | Chain and Rope |
| Maximum Pull Load | 930kg (2050 lb) |
| Contents | Contactor Units, Nylon Handle, Drilling Template, User Manual |
| Model | 1012 Mk2 |
| Replaces | Quick FSDP21012008A00 |
| Boat Size | 8 to 13 metres in length |
| Gypsy Size | 8mm |
| Amps Description | Current Absorbtion At Working Load: 130A |
| Depth | 219.5mm (8-41/64") |
