All About Boats
Quick DP1 524 Windlass Gypsy (500W / 24V / 6mm / Recyclable Gearbox)
Quick DP1 524 Windlass Gypsy (500W / 24V / 6mm / Recyclable Gearbox)
Regular price
£1,393.46 GBP
Regular price
Sale price
£1,393.46 GBP
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability

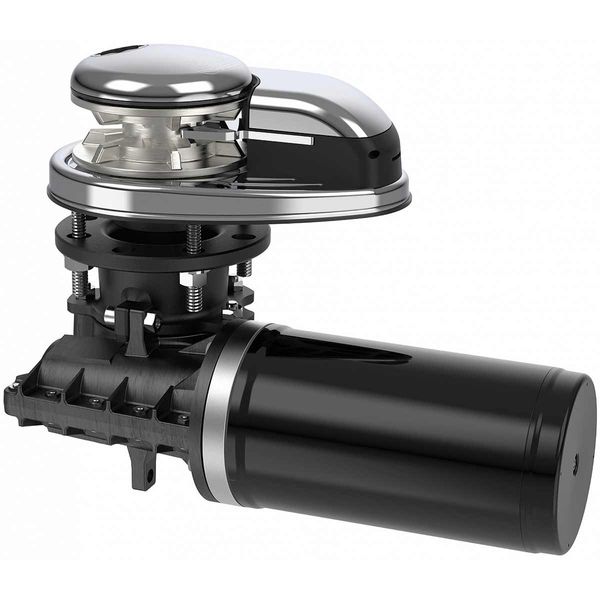

Quick DP1 524 Windlass Gypsy (500W / 24V / 6mm / Recyclable Gearbox)
Part No: Q2DP1093101
The Quick DP1 Prince 524 vertical windlass is suitable for boats from 5m to 7.8m (16 to 28ft). The vertical mount windlass is easy to install with an AISI 316 Stainless Steel base and fitted with the new 100% recyclable technopolymer gearbox. Featuring an integrated sensor and magnet for chain counter and a manual free-fall system. The Quick windlass features a 6mm (1/4") gypsy which is suitable for 6mm ISO chain.
| Fuse | 40A Protection Circuit Breaker |
| Height Description | 227.4mm (8-61/64") |
| Series | Prince DP1 |
| Size | Motor Cable: 10mm2 (AWG7) |
| Voltage Description | 24V DC |
| Wattage | Motor Power: 500W |
| Weight | 9.3kg (20lb) |
| Brand | Quick |
| Primary Construction | Stainless Steel |
| Suitable For | Chain |
| Maximum Pull Load | 660kg (1455 lb) |
| Contents | Contactor Units, Nylon Handle, Drilling Template, User Manual |
| Model | 524 |
| Boat Size | 5 to 8.5 metres in length |
| Gypsy Size | 6mm |
| Amps Description | Current Absorbtion At Working Load: 40A |
| Depth | 154mm (6-1/16") |
