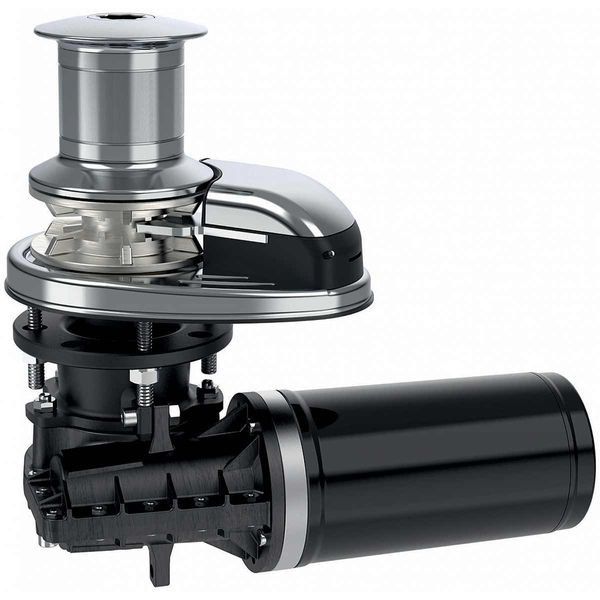

Quick DP1 512D Windlass Gypsy & Drum (500W, 12V, 6mm, Recycle Gearbox)
Part No: Q2DP1091201
The Quick DP1 Prince 512D vertical windlass is suitable for boats from 5m to 8.5m (16 to 28ft). The vertical mount windlass is easy to install with an AISI 316 Stainless Steel base and fitted with the new 100% recyclable technopolymer gearbox. Featuring an integrated sensor and magnet for chain counter and a manual free-fall system. The Quick windlass features a 6mm (1/4") gypsy which is suitable for 6mm ISO chain and is fitted with a drum.
| Fuse | 60A Protection Circuit Breaker |
| Height Description | 286.4mm (11-9/32") |
| Series | Prince DP1 |
| Size | Motor Cable: 16mm2 (AWG5) |
| Voltage Description | 12V DC |
| Wattage | Motor Power: 500W |
| Weight | 9.3kg (20lb) without drum |
| Brand | Quick |
| Primary Construction | Stainless Steel |
| Suitable For | Chain |
| Maximum Pull Load | 660kg (1455 lb) |
| Contents | Contactor Units, Nylon Handle, Drilling Template, User Manual |
| Model | 512D |
| Boat Size | 5 to 8.5 metres in length |
| Gypsy Size | 6mm |
| Amps Description | Current Absorbtion At Working Load: 80A |
| Depth | 154mm (6-1/16") |
