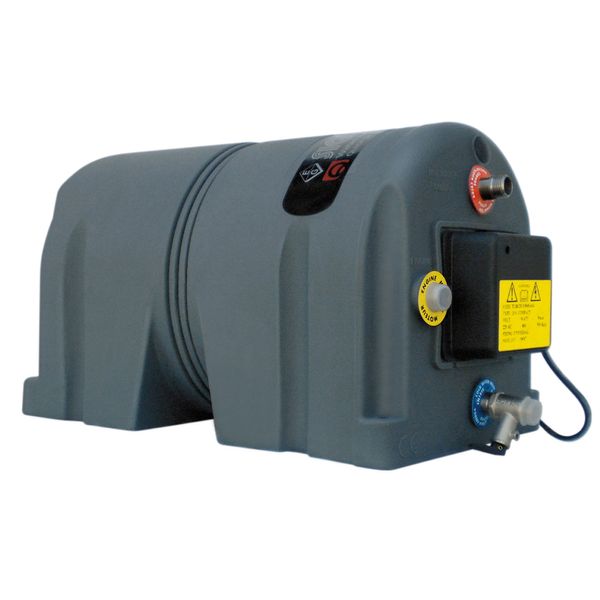

Quick Compact Calorifier Vertical / Horizontal (22L / 800W / 1 Coil)
Quick Compact Calorifier Vertical / Horizontal (22L / 800W / 1 Coil)
Couldn't load pickup availability
Limited Stock - Call 01484 482269
Quick Compact Calorifier Vertical / Horizontal (22L / 800W / 1 Coil)
Part No: 9-93101
Quick calorifier with a capacity of 22 Litres and a wattage of 800W. This Sigmar Marine Compact calorifier is constructed with high quality materials specially designed for marine use. The tank and heat exchanger are made from AISI 316 stainless steel with 20mm thermal insulating polyurethane foam and sturdy plastic casing with integrated brackets.
The calorifier is suitable for vertical or horizontal installation to the bulkhead, deck-head or floor.
This calorifier produces hot water from the Incoloy electric heating element. Also featuring a safety / non-return valve that allows discharging of the water heater in case of disuse, set at 6 bar (±1).
This Boiler comes with a regulating thermostat with double safety and 1/2" engine and water fittings.
Electric cable with Schuko plug
220V Mains electrical immersion heaters, thermostatically controlled
Simple to fit with easy to identify connections & instruction manual
Approvals
CE
Capacity Description
22 Litres (5.8 US Gallons)
Height Description
297mm
Length
558mm
Material
Stainless Steel AISI 316 Heat Exchanger & Tank, Polyurethane Foam Tank Heat Insulation, Incoloy Electric Heating Element, Plastic Casing & Brackets
Type
Single Coil Calorifiers
Voltage Description
220V AC
Wattage
800W
Weight
7.2kg
Width
287mm
Working Pressure
5 bar (500 kPa)
Brand
Quick
Primary Construction
Stainless Steel 316
Calorifier Coil
Single
Country of Origin
United Kingdom
Connections Description
Engine & Water: 1/2" BSP ISO 228 Thread
Model
B022 UC
Pressure Rating
Pressure Tested at: 5 bar (500 kPa), Safety Valve: 6 bar
Share
View full details
Quick Compact Calorifier Vertical / Horizontal (22L / 800W / 1 Coil)
Part No: 9-93101
Quick calorifier with a capacity of 22 Litres and a wattage of 800W. This Sigmar Marine Compact calorifier is constructed with high quality materials specially designed for marine use. The tank and heat exchanger are made from AISI 316 stainless steel with 20mm thermal insulating polyurethane foam and sturdy plastic casing with integrated brackets.
The calorifier is suitable for vertical or horizontal installation to the bulkhead, deck-head or floor.
This calorifier produces hot water from the Incoloy electric heating element. Also featuring a safety / non-return valve that allows discharging of the water heater in case of disuse, set at 6 bar (±1).
This Boiler comes with a regulating thermostat with double safety and 1/2" engine and water fittings.
Electric cable with Schuko plug
220V Mains electrical immersion heaters, thermostatically controlled
Simple to fit with easy to identify connections & instruction manual
| Approvals | CE |
| Capacity Description | 22 Litres (5.8 US Gallons) |
| Height Description | 297mm |
| Length | 558mm |
| Material | Stainless Steel AISI 316 Heat Exchanger & Tank, Polyurethane Foam Tank Heat Insulation, Incoloy Electric Heating Element, Plastic Casing & Brackets |
| Type | Single Coil Calorifiers |
| Voltage Description | 220V AC |
| Wattage | 800W |
| Weight | 7.2kg |
| Width | 287mm |
| Working Pressure | 5 bar (500 kPa) |
| Brand | Quick |
| Primary Construction | Stainless Steel 316 |
| Calorifier Coil | Single |
| Country of Origin | United Kingdom |
| Connections Description | Engine & Water: 1/2" BSP ISO 228 Thread |
| Model | B022 UC |
| Pressure Rating | Pressure Tested at: 5 bar (500 kPa), Safety Valve: 6 bar |
