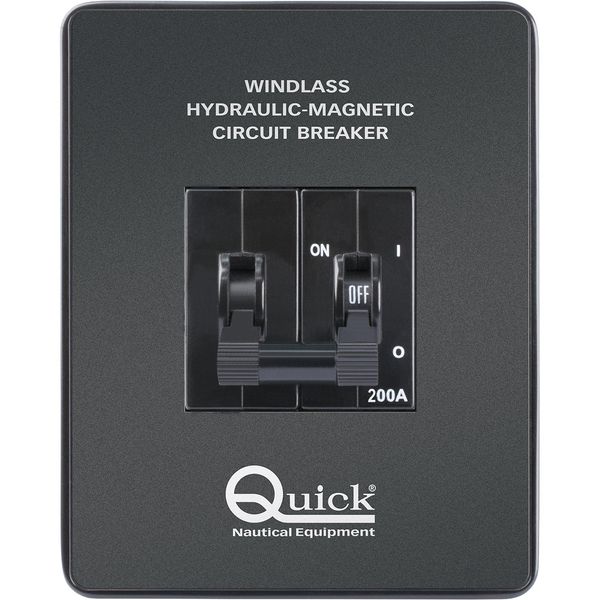

Quick 10200 Hydraulic Magnetic Circuit Breaker (200A / DC)

Quick 10200 Hydraulic Magnetic Circuit Breaker (200A / DC)

Regular price £475.55 GBP
Regular price Sale price £475.55 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Quick 10200 Hydraulic Magnetic Circuit Breaker (200A / DC)



Part No: Q-CB10200

The Quick 200 amp hydraulic magnetic circuit breaker offers protection to your windlass when using direct currents. The slow burn circuit breaker will trip in over-current situations, breaking the circuit and protecting your windlass. They can be manually reset and are suitable for up to 80V DC. The Quick 10200 circuit breaker trips in the presence of shorts or prolonged overloads.
Approvals CE
Height Description 100mm (3-15/16")
Operating Temperature -40°C to +85°C
Voltage Description Max. 80V DC
Width 80mm (3-5/32")
Brand Quick
Amps Description Trip Current: 200A
Depth Overall: 89mm (3-1/2"), Above Surface: 18mm (45/64"), Behind Panel: 71mm (2-51/64)
