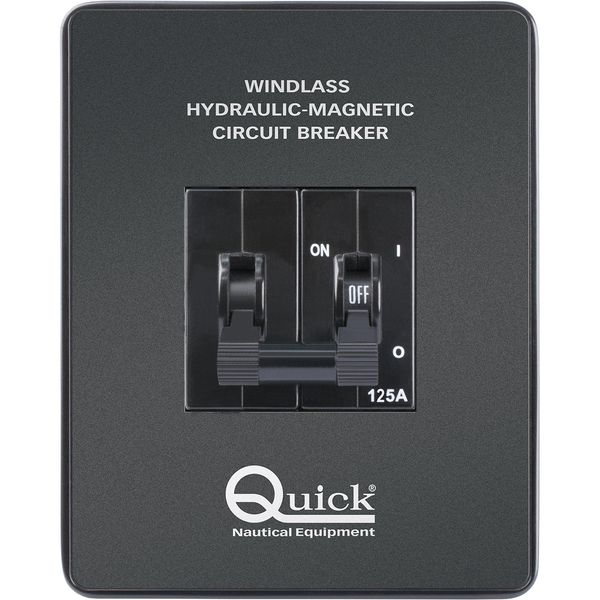

Quick 10125 Hydraulic Magnetic Circuit Breaker (125A / DC)
Quick 10125 Hydraulic Magnetic Circuit Breaker (125A / DC)
Regular price
£472.45 GBP
Regular price
£393.71 GBP
Sale price
£472.45 GBP
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Limited Stock - Call 01484 482269
Quick 10125 Hydraulic Magnetic Circuit Breaker (125A / DC)
Part No: Q-CB10125
The Quick 125 amp hydraulic magnetic circuit breaker offers protection to your windlass when using direct currents. The slow burn circuit breaker will trip in over-current situations, breaking the circuit and protecting your windlass. They can be manually reset and are suitable for up to 80V DC. The Quick 10125 circuit breaker trips in the presence of shorts or prolonged overloads.
Approvals
CE
Height Description
100mm (3-15/16")
Operating Temperature
-40°C to +85°C
Voltage Description
Max. 80V DC
Width
80mm (3-5/32")
Brand
Quick
Amps Description
Trip Current: 125A
Depth
Overall: 89mm (3-1/2"), Above Surface: 18mm (45/64"), Behind Panel: 71mm (2-51/64)
Share
View full details
Quick 10125 Hydraulic Magnetic Circuit Breaker (125A / DC)
Part No: Q-CB10125
The Quick 125 amp hydraulic magnetic circuit breaker offers protection to your windlass when using direct currents. The slow burn circuit breaker will trip in over-current situations, breaking the circuit and protecting your windlass. They can be manually reset and are suitable for up to 80V DC. The Quick 10125 circuit breaker trips in the presence of shorts or prolonged overloads.
| Approvals | CE |
| Height Description | 100mm (3-15/16") |
| Operating Temperature | -40°C to +85°C |
| Voltage Description | Max. 80V DC |
| Width | 80mm (3-5/32") |
| Brand | Quick |
| Amps Description | Trip Current: 125A |
| Depth | Overall: 89mm (3-1/2"), Above Surface: 18mm (45/64"), Behind Panel: 71mm (2-51/64) |
