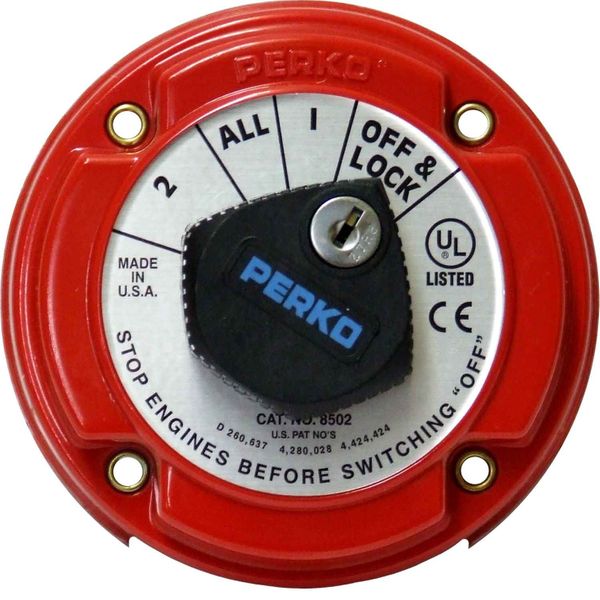

Perko Standard Battery Isolator 250A with Lock (12-32V)
Part No: 714675
Perko Part Number: 8502DP
The Perko 8502DP standard battery isolator selector switch allows the operator to select the use of either battery 1, battery 2 or both batteries in the system from one single switch. This four-way battery selector switch features the following positions: Off & Lock / 1 / All / 2.
The Perko battery isolator change over switch rates 360 amps intermittent and 250 amps continuous, suitable for 12 volt, 24 volt or 32 volt marine electrical systems.
| Approvals | UL Listed Std. 1107 & CE |
| Voltage Description | 12V DC, 24V DC, 32V DC |
| Brand | Perko |
| Battery Isolator Switch Selector | 4-Way |
| Alternator Field Disconnect | No |
| Contact Studs | 10mm (3/8") |
| Diameter Description | 134mm (5-1/4") |
| Ignition Protected | Yes |
| Key Lock | Yes |
| Model | 8502DP |
| Amps Description | Continuous: 250A, Intermittent: 360A |
| Depth | 67mm (2-5/8") |
