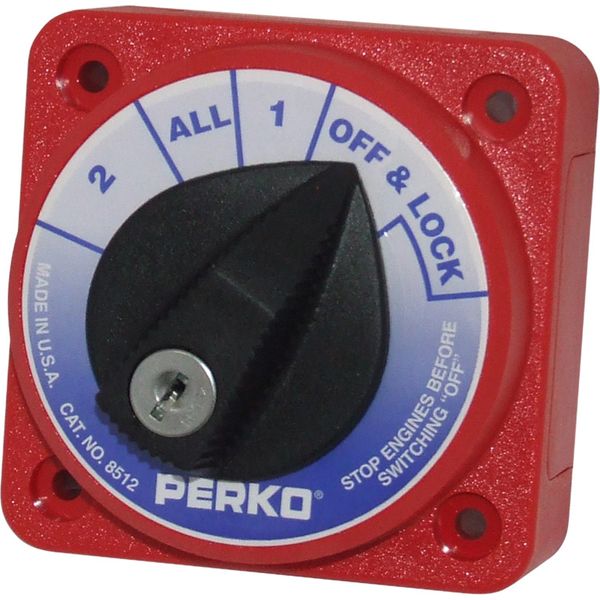

Perko Compact Battery Isolator 315A with Lock (12V, 24V, 32V)
Part No: 714663
Perko Part Number: 8512DP
The Perko 8511DP compact battery isolator selector switch allows the operator to select the use of either battery 1, battery 2 or both batteries in the system from one single switch. This battery selector switch features the following positions: Off & Lock / 1 / All / 2.
The Perko battery isolator change over switch rates 450 amps intermittent and 315 amps continuous, suitable for 12 volt, 24 volt or 32 volt marine electrical systems.
Approvals
UL Listed Std. 1107 & CE
Voltage Description
12V DC, 24V DC, 32V DC
Brand
Perko
Battery Isolator Switch Selector
4-Way
Alternator Field Disconnect
No
Contact Studs
10mm (3/8")
Diameter Description
102mm (4-3/4")
Dimensions
Hole Centre Dimensions: 77mm x 77mm
Ignition Protected
Yes
Key Lock
Yes
Model
8512DP
Amps Description
Continuous: 315A, Intermittent: 450A
Depth
47mm (1-7/8")
Share
View full details
Perko Compact Battery Isolator 315A with Lock (12V, 24V, 32V)
Part No: 714663
Perko Part Number: 8512DP
The Perko 8511DP compact battery isolator selector switch allows the operator to select the use of either battery 1, battery 2 or both batteries in the system from one single switch. This battery selector switch features the following positions: Off & Lock / 1 / All / 2.
The Perko battery isolator change over switch rates 450 amps intermittent and 315 amps continuous, suitable for 12 volt, 24 volt or 32 volt marine electrical systems.
| Approvals | UL Listed Std. 1107 & CE |
| Voltage Description | 12V DC, 24V DC, 32V DC |
| Brand | Perko |
| Battery Isolator Switch Selector | 4-Way |
| Alternator Field Disconnect | No |
| Contact Studs | 10mm (3/8") |
| Diameter Description | 102mm (4-3/4") |
| Dimensions | Hole Centre Dimensions: 77mm x 77mm |
| Ignition Protected | Yes |
| Key Lock | Yes |
| Model | 8512DP |
| Amps Description | Continuous: 315A, Intermittent: 450A |
| Depth | 47mm (1-7/8") |
