Perko

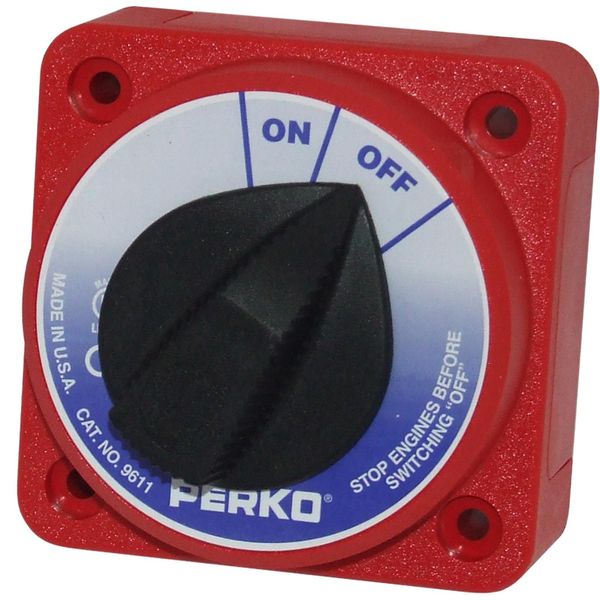

Perko 9611DP Compact Battery Isolator 315A (12-32V)
Perko 9611DP Compact Battery Isolator 315A (12-32V)
Regular price
£167.46 GBP
Regular price
£139.55 GBP
Sale price
£167.46 GBP
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Limited Stock - Call 01484 482269
Perko 9611DP Compact Battery Isolator 315A (12-32V)
Part No: 714667
Perko Part Number: 9611DP
The Perko 9611DP compact battery isolator switch allows the operator to turn the battery to the off position when not in use and back on when required by a single switch. This compact two way selector switch features the following switch positions: On / Off.
The Perko battery isolator switch rates 450 amps intermittent and 315 amps continuous, suitable for 12 volt, 24 volt or 32 volt marine electrical systems.
Approvals
UL Listed Std. 1107 and CE
Voltage Description
12V DC, 24V DC, 32V DC
Brand
Perko
Battery Isolator Switch Selector
2-Way
Alternator Field Disconnect
No
Contact Studs
10mm (3/8")
Diameter Description
102mm (4-3/4")
Dimensions
Hole Centre Dimensions: 77mm x 77mm
Ignition Protected
Yes
Key Lock
No
Model
9611
Amps Description
Continuous: 315A, Intermittent: 450A
Depth
47mm (1-7/8")T
Share
View full details
Perko 9611DP Compact Battery Isolator 315A (12-32V)
Part No: 714667
Perko Part Number: 9611DP
The Perko 9611DP compact battery isolator switch allows the operator to turn the battery to the off position when not in use and back on when required by a single switch. This compact two way selector switch features the following switch positions: On / Off.
The Perko battery isolator switch rates 450 amps intermittent and 315 amps continuous, suitable for 12 volt, 24 volt or 32 volt marine electrical systems.
| Approvals | UL Listed Std. 1107 and CE |
| Voltage Description | 12V DC, 24V DC, 32V DC |
| Brand | Perko |
| Battery Isolator Switch Selector | 2-Way |
| Alternator Field Disconnect | No |
| Contact Studs | 10mm (3/8") |
| Diameter Description | 102mm (4-3/4") |
| Dimensions | Hole Centre Dimensions: 77mm x 77mm |
| Ignition Protected | Yes |
| Key Lock | No |
| Model | 9611 |
| Amps Description | Continuous: 315A, Intermittent: 450A |
| Depth | 47mm (1-7/8")T |
