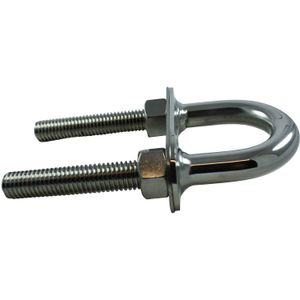

Osculati Stainless Steel U Bolt (69mm x 48mm Hole)
Osculati Stainless Steel U Bolt (69mm x 48mm Hole)
Regular price
£75.36 GBP
Regular price
£62.80 GBP
Sale price
£75.36 GBP
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Limited Stock - Call 01484 482269
Osculati Stainless Steel U Bolt (69mm x 48mm Hole)
Part No: 813679
This high quality U bolt is made from mirror polished stainless steel. U bolts are used as a heavy duty eye plate for when extra size or strength is required. This stainless steel U bolt has a 11000 kg breaking load. The U bolt has two plates and is supplied with nuts. The top plate is welded onto the bolt and the bottom plate can be adjusted along the bottom 81mm of the bolts.
Height Description
Overall: 160mm (6.3"), Hole: 69mm (2.7")
Material
Polished Stainless Steel
Width
Bolt Width Centre to Centre: 60mm (2.4"), Hole: 47.5mm (1-7/8")
Brand
Osculati
Number of Fixing Bolts
2
Primary Construction
Stainless Steel
Colour
Silver
Diameter Description
15.8mm (5/8")
Dimensions
Plate Adjustment: 81mm (3.2")
Share
View full details
Osculati Stainless Steel U Bolt (69mm x 48mm Hole)
Part No: 813679
This high quality U bolt is made from mirror polished stainless steel. U bolts are used as a heavy duty eye plate for when extra size or strength is required. This stainless steel U bolt has a 11000 kg breaking load. The U bolt has two plates and is supplied with nuts. The top plate is welded onto the bolt and the bottom plate can be adjusted along the bottom 81mm of the bolts.
| Height Description | Overall: 160mm (6.3"), Hole: 69mm (2.7") |
| Material | Polished Stainless Steel |
| Width | Bolt Width Centre to Centre: 60mm (2.4"), Hole: 47.5mm (1-7/8") |
| Brand | Osculati |
| Number of Fixing Bolts | 2 |
| Primary Construction | Stainless Steel |
| Colour | Silver |
| Diameter Description | 15.8mm (5/8") |
| Dimensions | Plate Adjustment: 81mm (3.2") |
