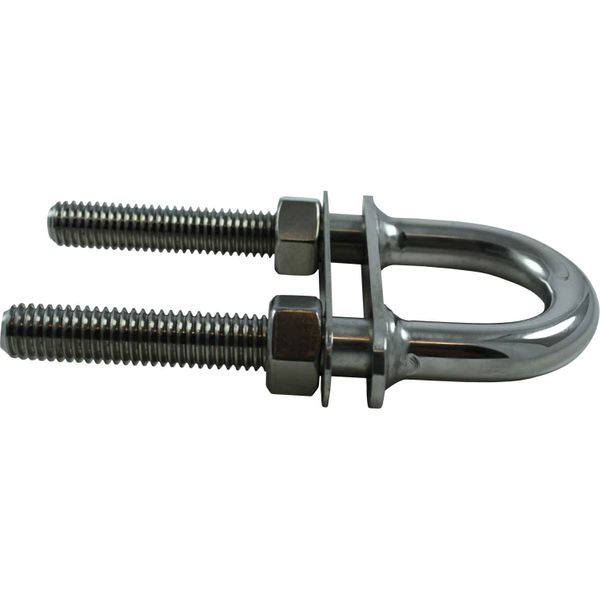

Osculati Stainless Steel U Bolt (41mm x 34mm Hole)

Osculati Stainless Steel U Bolt (41mm x 34mm Hole)

Regular price £28.37 GBP
Regular price Sale price £28.37 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Osculati Stainless Steel U Bolt (41mm x 34mm Hole)



Part No: 813677

This high quality U bolt is made from mirror polished stainless steel. U bolts are used as a heavy duty eye plate for when extra size or strength is required. This stainless steel U bolt has a 9000 kg breaking load. The U bolt has two plates and is supplied with nuts. The top plate is welded onto the bolt and the bottom plate can be adjusted along the bottom 66.2mm of the bolts.
Height Description Overall: 131mm (5.2"), Hole: 41mm (1.6")
Length Bolt Length: 67mm
Material Polished Stainless Steel
Width Bolt Width Centre to Centre: 46mm (1.8"), Hole: 34mm (1.3")
Brand Osculati
Number of Fixing Bolts 2
Primary Construction Stainless Steel
Diameter Description 12.5mm (1/2")
Dimensions Plate Adjustment: 66.2mm (2.6")
