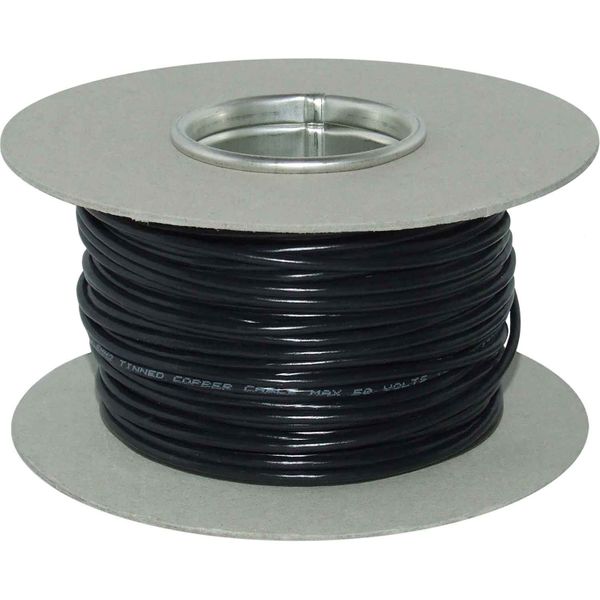

Oceanflex 7 Core 1.5mm² Tinned Black Thin Wall Cable (100M)
Oceanflex 7 Core 1.5mm² Tinned Black Thin Wall Cable (100M)
Regular price
£662.41 GBP
Regular price
£552.01 GBP
Sale price
£662.41 GBP
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Limited Stock - Call 01484 482269
Oceanflex 7 Core 1.5mm² Tinned Black Thin Wall Cable (100M)
Part No: 748719-A
Oceanflex 7 core black thin wall tinned electrical cable, with 1.5mm² cross section in accordance with ISO 6722-1:2011 (Class B). Tinned copper offers excellent corrosion resistance to make this cable particularly suitable in marine environments, while the PVC outer sheath offers good protection against abrasion and cuts, as well as resistance to petrol, diesel, lubricating oils and diluted acids.
This is a 100 metre cable.
Approvals
Manufactured in accordance with ISO6722-1: 2011 (Class B)
Temperature Range
-40°C to +105°C (with excursions up to 120°C)
Voltage Description
12V, 24V DC (Max. 60V)
Brand
Oceanflex
Style
Thin Wall Cable
Cable Conductor
Tinned Copper
Cable Cores
7 Core
Colour
Black
Country of Origin
United Kingdom
Unit of Sale
100 Metres
Cable Inner Colours
Red, Black, Green, Yellow, Brown, Blue and White
Cable Insulation
Hard Grade PVC
Conductor Specifications
7 x 21/0.30mm
Cable Conductor Cross Section Description
7 x 1.5mm²
Diameter Description
Max Outside Diameter: 8.5mm
Resistance Per Metre at 20degC
0.00130 ohms
Shape Description
Round
Amps Description
Nominal Current Rating: 21A
Share
View full details
Oceanflex 7 Core 1.5mm² Tinned Black Thin Wall Cable (100M)
Part No: 748719-A
Oceanflex 7 core black thin wall tinned electrical cable, with 1.5mm² cross section in accordance with ISO 6722-1:2011 (Class B). Tinned copper offers excellent corrosion resistance to make this cable particularly suitable in marine environments, while the PVC outer sheath offers good protection against abrasion and cuts, as well as resistance to petrol, diesel, lubricating oils and diluted acids.
This is a 100 metre cable.
| Approvals | Manufactured in accordance with ISO6722-1: 2011 (Class B) |
| Temperature Range | -40°C to +105°C (with excursions up to 120°C) |
| Voltage Description | 12V, 24V DC (Max. 60V) |
| Brand | Oceanflex |
| Style | Thin Wall Cable |
| Cable Conductor | Tinned Copper |
| Cable Cores | 7 Core |
| Colour | Black |
| Country of Origin | United Kingdom |
| Unit of Sale | 100 Metres |
| Cable Inner Colours | Red, Black, Green, Yellow, Brown, Blue and White |
| Cable Insulation | Hard Grade PVC |
| Conductor Specifications | 7 x 21/0.30mm |
| Cable Conductor Cross Section Description | 7 x 1.5mm² |
| Diameter Description | Max Outside Diameter: 8.5mm |
| Resistance Per Metre at 20degC | 0.00130 ohms |
| Shape Description | Round |
| Amps Description | Nominal Current Rating: 21A |
