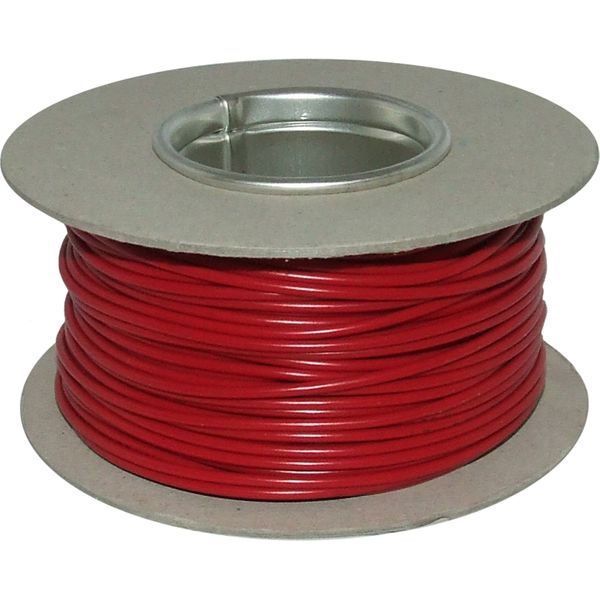

Oceanflex 1 Core 1.5mm² Tinned Red Thin Wall Cable (50m)
Oceanflex 1 Core 1.5mm² Tinned Red Thin Wall Cable (50m)
Couldn't load pickup availability
Limited Stock - Call 01484 482269
Part No: 748115-K
Oceanflex thin wall tinned electrical cable, with 1.5mm² cross section in accordance with ISO 6722-1:2011 (Class B). This cable features a single core copper conductor manufactured to BS EN 60228:2005 which is tinned and then insulated in a hard grade PVC insulation. Tinned copper offers excellent corrosion resistance to make this cable particularly suitable in marine environments, while the PVC outer sheath offers good protection against abrasion and cuts, as well as resistance to petrol, diesel, lubricating oils and diluted acids. As the insulation is reduced compared to traditional ways of cable manufacturing, this offers considerable weight saving benefits which is particularly useful in big wiring harnesses.
This is a 50 metre cable reel with red PVC wall, other wall colours are also available.
Approvals
Manufactured in accordance with ISO6722: 2011 (Class B)
Maximum Load Description
12V = 252 Watts, 24V = 504 Watts
Temperature Range
-40°C to +105°C (with excursions to 120°C max)
Type
Tinned Single Core Cables
Voltage Description
Max. 60V (suitable for 12V DC & 24V DC systems, excluding Hi Tension circuits)
Brand
Oceanflex
Style
Thin Wall Cable
Cable Conductor
Tinned Copper
Cable Cores
1 Core
Colour
Red
Country of Origin
United Kingdom
Unit of Sale
50 Metres
Cable Insulation
Hard Grade PVC
Conductor Specifications
21/0.30 mm
Cable Conductor Cross Section Description
1.5mm²
Diameter Description
Max Outside Diameter: 2.4mm
Replaces
712115-K
Resistance Per Metre at 20degC
0.00130 ohms
Shape Description
Round
Amps Description
Nominal Current Rating: 21A
Share
View full details
Part No: 748115-K
Oceanflex thin wall tinned electrical cable, with 1.5mm² cross section in accordance with ISO 6722-1:2011 (Class B). This cable features a single core copper conductor manufactured to BS EN 60228:2005 which is tinned and then insulated in a hard grade PVC insulation. Tinned copper offers excellent corrosion resistance to make this cable particularly suitable in marine environments, while the PVC outer sheath offers good protection against abrasion and cuts, as well as resistance to petrol, diesel, lubricating oils and diluted acids. As the insulation is reduced compared to traditional ways of cable manufacturing, this offers considerable weight saving benefits which is particularly useful in big wiring harnesses.
This is a 50 metre cable reel with red PVC wall, other wall colours are also available.
| Approvals | Manufactured in accordance with ISO6722: 2011 (Class B) |
| Maximum Load Description | 12V = 252 Watts, 24V = 504 Watts |
| Temperature Range | -40°C to +105°C (with excursions to 120°C max) |
| Type | Tinned Single Core Cables |
| Voltage Description | Max. 60V (suitable for 12V DC & 24V DC systems, excluding Hi Tension circuits) |
| Brand | Oceanflex |
| Style | Thin Wall Cable |
| Cable Conductor | Tinned Copper |
| Cable Cores | 1 Core |
| Colour | Red |
| Country of Origin | United Kingdom |
| Unit of Sale | 50 Metres |
| Cable Insulation | Hard Grade PVC |
| Conductor Specifications | 21/0.30 mm |
| Cable Conductor Cross Section Description | 1.5mm² |
| Diameter Description | Max Outside Diameter: 2.4mm |
| Replaces | 712115-K |
| Resistance Per Metre at 20degC | 0.00130 ohms |
| Shape Description | Round |
| Amps Description | Nominal Current Rating: 21A |
