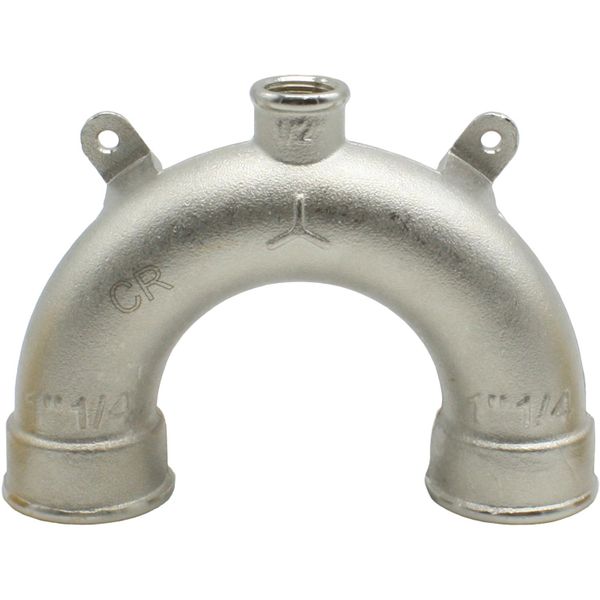

Maestrini DZR Brass Anti-Siphon Loop (1" BSP / 1/2" BSP Vent)
Part No: 410065
This Maestrini anti-siphon device is made from DZR brass (corrosion resistant brass). The anti-siphon device allows fluid to flow in the intended direction but when the flow is reversed, the vacuum will operate the anti-siphon valve which will break the siphoning effect. This anti-siphon loop is used in conjunction with 410073 siphon break valve.
Typical applications for this anti-siphon loop are boat water intakes, exhaust injection lines and toilet systems where installed equipment is below the waterline.
| Height Description | 102mm (4") |
| Material | Corrosion Resistant (CR), Dezincification Resistant Brass (DZR) |
| Width | 140mm |
| Brand | Maestrini |
| Primary Construction | DZR / CR Brass |
| Thread Connection | BSP |
| Thread Fitting Size | 1" |
| Thread Gender | Female |
| Valve Design | Siphon Break Valve |
| Country of Origin | Italy |
| Connections Description | Port Size: 1" BSP Female, Vent Pipe: 1/2" BSP Female |
| Pressure Rating | 580 PSI (40 Bar) |
| Thread Size | 1" BSP Female |
| Depth | 45mm (1.8") |
