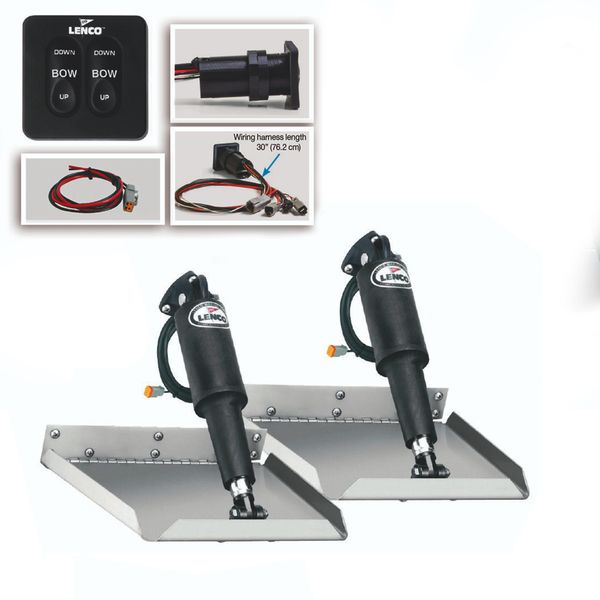

Lenco Trim Tab Kit with Standard Switch (Edge Mount / 12" x 12")



Part No: 4-46614

Lenco 15106-102 Edge Mount trim tab kit contains everything you need in one box! With the added benefit of having the NEW integrated switch choice and power connector all included. Boat lengths 17' (5.2 m) to 30' (9.1 m). Blades are constructed of 12 gauge (2.7mm) laser cut 304 stainless steel with a 1" (2.5 cm) turned up edges and a 5 degree taper on both sides to the trailing edge & 1/8" (3.2mm) diameter hinge pin. Upper and lower high impact corrosion proof mounting brackets with mechanical cable gland seal. Switch included.

L" x W": 12" x 12"

Kit Contents:

Switch Kit - Standard Integrated Switch

2 x 12-gauge stainless steel standard finish blades

2 x Lenco 15054-001 actuators with 6' (1.8 m) leads and Deutsch connectors

2 x Lenco 30133-103 actuator extension wiring harnesses - 20' (6.1 m) length

2 x Lenco 15085-001 upper mounting brackets with gland seal

2 x Lenco 50014-001 lower mounting brackets

Lenco owner's/installation manual

Stainless steel mounting hardware



Length	305mm (12")
Material	Stainless Steel 304
Size	12" x 12"
Voltage Description	12V DC
Width	305mm (12")
Brand	Lenco
Primary Construction	Stainless Steel 304
Contents	Standard integrated switch kit, 2 stainless steel blades, 2 actuators, 2 actuator extension wiring harnesses, 2 upper & lower mounting brackets, manual & mounting hardware
Thickness	Blade: 2.7mm (12 Gauge)
Boat Size	Lengths 17ft (5.2m) to 30ft (9.1m)
