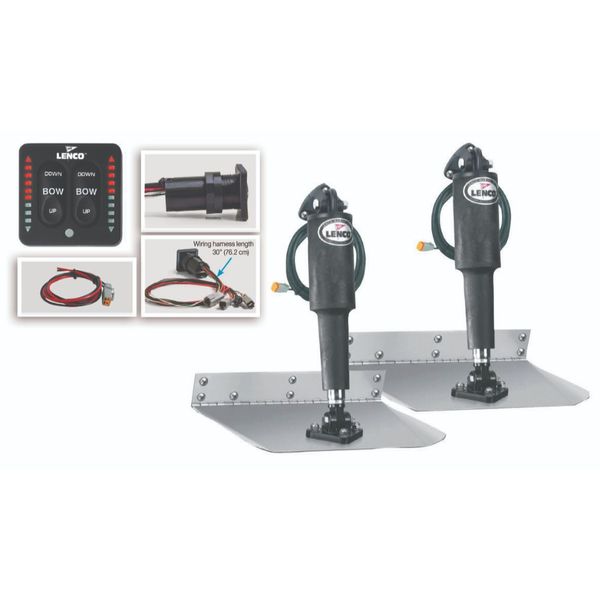

Lenco Trim Tab Kit with LED Switch (Standard Mount / 9" x 12")



Part No: 4-46617

Lenco 15108-103 Standard trim tab kit contains everything you need in one box! With the added benefit of having the NEW integrated switch choice and power connector all included. Boat lengths 16' (4.9 m) to 25' (7.6m). Blades are constructed of 12 gauge (2.7 mm) laser cut 304 stainless steel with a 5/8" (1.6 cm) flared trailing edge & 1/8" (3.2 mm) diameter hinge pin. Upper and lower high impact corrosion proof mounting brackets with mechanical cable gland seal. Switch included.

L x W: 9" x 12"

12 Volt

Kit Contents:

Switch Kit - LED Integrated Switch

2 x 12-gauge stainless steel standard finish blades

2 x Lenco 15054-001 actuators with 6' (1.8 m) leads and Deutsch connectors

2 x Lenco 30133-103 actuator extension wiring harnesses - 20' (6.1 m) length

2 x Lenco 15085-001 upper mounting brackets with gland seal

2 x Lenco 50014-001 lower mounting brackets

Lenco owner's/installation manual

Stainless steel mounting hardware



Length	228mm (9")
Material	Stainless Steel 304
Size	9" x 12"
Voltage Description	12V DC
Width	305mm (12")
Brand	Lenco
Primary Construction	Stainless Steel 304
Contents	LED integrated switch kit, 2 stainless steel blades, 2 actuators, 2 actuator extension wiring harnesses, 2 upper & lower mounting brackets, manual & mounting hardware
Thickness	Blade: 2.7mm (12 Gauge)
