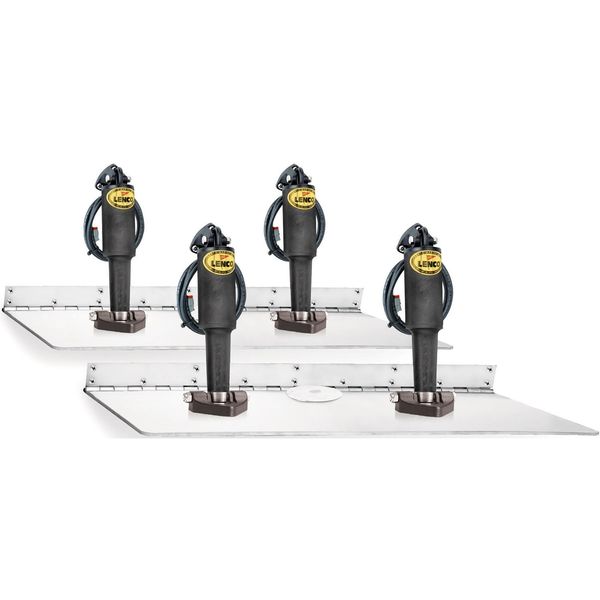

Lenco Super Strong SS Trim Tab Kit 12V (16" x 24" / Dual Actuator)

Part No: 4-46548

Lenco 15022-101 Super Strong Trim Tab Kit with dual actuators for 12V DC systems. The trim tab plate measures 16" x 24" and is suitable for large vessels that require extra lift, boat lengths from 35' to 50' (10.6m - 15.2m).

Offering the same features as Lenco's single system, this series gives you a longer blade design with dual actuator support. The blades are constructed of 7 gauge (4.6mm) laser cut 304 stainless steel with 3/8" (9.5mm) diameter hinge pin. High-impact corrosion-proof upper and lower mounting brackets with mechanical gland cable seal, 5/16" (8mm) upper and 3/8" (9.5mm) lower stainless steel mounting bolts. 3.75" (9.5cm) sacrificial anodes installed.

Lenco 15022-101 Super Strong Trim Tab Kit Contents:

- 2x 7-gauge stainless steel standard finish blades

- 4x Lenco 15056-002 12-volt XD Extreme Duty actuators with 6' (1.8 m) & Deutsch connectors (15063-002 for 24-volt)

- 4x Lenco 15140-001 120 Lower Mounting Brackets

- Lenco owner's manual / installation instructions

- Stainless steel mounting hardware

Note: Actuator extension harnesses not in kits, must be purchased separately (4 required)
