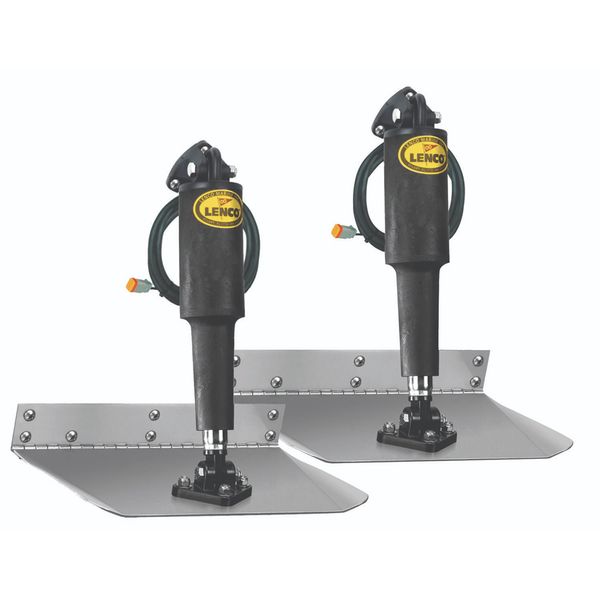

Lenco Stainless Steel Trim Tab Kit (Standard Mount / 9" x 24")



Part No: 4-46531

Lenco's original Trim Tab design and still the most popular series. Trim tab measures 9" by 24".

Ideal for most common style boats from centre console fishing boats to cuddy cabin cruisers.

Boat lengths 26' (7.9m) to 40' (12.1m).

Blades are constructed of 12 gauge (2.7mm) laser cut 304 stainless steel with a 5/8" (1.6cm) flared trailing edge & 1/8" (3.2mm) diameter hinge pin. Upper and lower high impact corrosion proof mounting brackets with mechanical cable gland seal.

Hinge Height: 1" (2.5 cm)

Min Transom Height: 14" (35.6 cm)

12 Volt

Kit Contents:

2 x 12-gauge stainless steel standard finish blades

2 x Lenco15054-001 actuators with 6' (1.8 m) leads and Deutsch connectors

2 x Lenco30133-103 actuator extension wiring harnesses - 20' (6.1 m) length

2 x Lenco15085-001 upper mounting brackets with gland seal

2 x Lenco50014-001 lower mounting brackets

Lenco owner's/installation manual

Stainless steel mounting hardware

*Available in electro-polish finish. Contact ASAP Sales for info.



Height Description	Hinge: 1" (2.5cm), Min transom: 14" (35.6cm)
Length	228mm (9")
Material	Stainless Steel 304
Size	9" x 24"
Voltage Description	12V DC
Width	610mm (24")
Brand	Lenco
Primary Construction	Stainless Steel 304
Contents	2 Stainless steel blades, 2 actuators, 2 actuator extension harnesses, 2 upper mounting brackets, 2 lower mounting brackets, mounting hardware & manual
Thickness	Blade: 2.7mm (12 Gauge)
