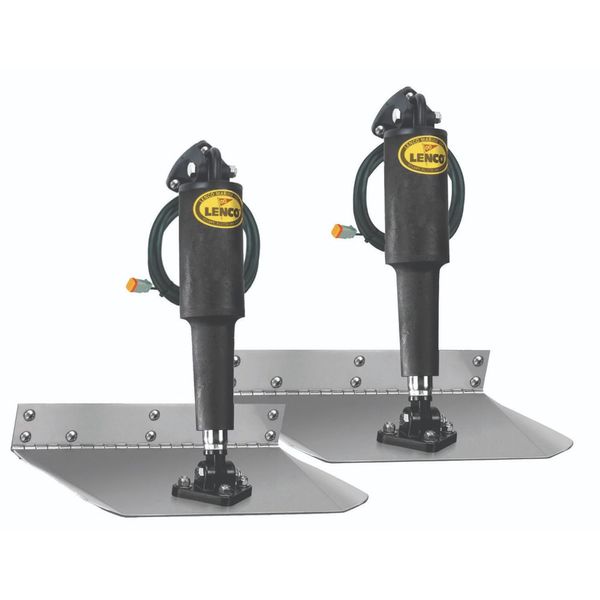

Lenco Stainless Steel Trim Tab Kit (Standard Mount / 12" x 24")



Part No: 4-46536

Lenco's original Trim Tab design and still the most popular series. Trim tab measures 12" by 24".

Ideal for most common style boats from centre console fishing boats to cuddy cabin cruisers.

Boat lengths 30' (9.1m) to 44' (13.4m).

Blades are constructed of 12 gauge (2.7mm) laser cut 304 stainless steel with a 5/8" (1.6cm) flared trailing edge & 1/8" (3.2mm) diameter hinge pin. Upper and lower high impact corrosion proof mounting brackets with mechanical cable gland seal.

Hinge Height: 1" (2.5 cm)

Min Transom Height: 14" (35.6 cm)

12 Volt

Kit Contents:

2 x 12-gauge stainless steel standard finish blades

2 x Lenco 15054-001 actuators with 6' (1.8 m) leads and Deutsch connectors

2 x Lenco 30133-103 actuator extension wiring harnesses - 20' (6.1 m) length

2 x Lenco 15085-001 upper mounting brackets with gland seal

2 x Lenco 50014-001 lower mounting brackets

Lenco owner's/installation manual

Stainless steel mounting hardware

*Available in electro-polish finish. Contact ASAP Sales for info.



Height Description	Hinge: 1" (2.5cm) Min transom height: 14" (35.6cm)
Length	305mm (12")
Material	Stainless Steel 304
Size	12" x 24"
Voltage Description	12V DC
Width	610mm (24")
Brand	Lenco
Primary Construction	Stainless Steel 304
Contents	2 Stainless steel blades, 2 actuators, 2 actuator extension harnesses, 2 upper mounting brackets, 2 lower mounting brackets, mounting hardware & manual
Thickness	Blade: 2.7mm (12 Gauge)
Boat Size	30' - 44'
