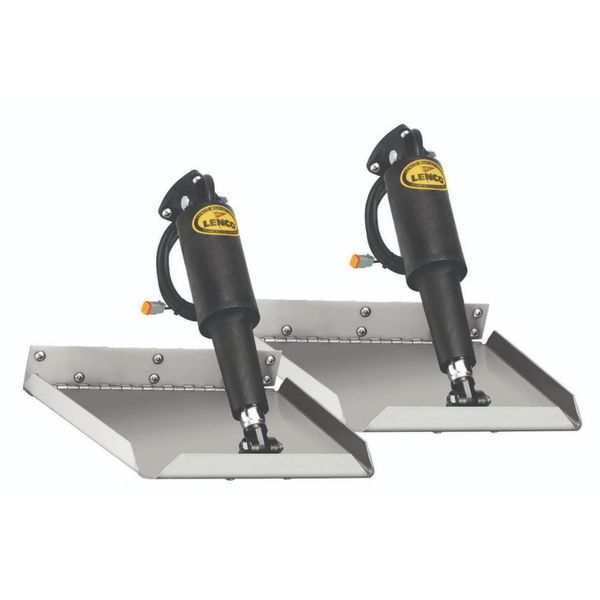

Lenco Stainless Steel Trim Tab Kit (Edge Mount / 12" x 12")



Part No: 4-46542

Lenco 15016-101 is designed for boat applications where a lower actuator mounting height is desirable. Actuator mounts at the trailing edge of the blade giving it a 1/2" (1.3cm) lower mounting height on 9" (22.9cm) long blades & 3" (7.6cm) lower mounting height on 12" (30.5cm) long blades. All edges are turned up for added strength and style. Boat lengths 17' (5.2m) to 30' (9.1m).

Blades are constructed of 12 gauge (2.7mm) laser cut 304 stainless steel with 1" (2.5cm) turned up edges and a 5 degree taper on both sides to the trailing edge, & 1/8" (3.2mm) diameter hinge pin. Upper and lower high impact corrosion proof mounting brackets with mechanical cable gland seal.

Hinge Height: 2" (5.1 cm)

Min Transom Height: 13.5" (34.3 cm)

12 volt

Kit Contents:

2 x 12-gauge stainless steel standard finish blades

2 x Lenco 15054-001 actuators with 6' (1.8 m) leads and Deutsch connectors

2 x Lenco 30133-103 actuator extension wiring harnesses - 20' (6.1 m) length

2 x Lenco 15085-001 upper mounting brackets with gland seal

2 x Lenco 50014-001 lower mounting brackets

Lenco owner's/installation manual

* Available in electro-polish finish. Contact ASAP Sales for info.



Height Description	Hinge: 2" (5.1cm) Min transom height: 11" (27.9cm)
Length	305mm (12")
Material	Stainless Steel 304
Size	12" x 12"
Voltage Description	12V DC
Width	305mm (12")
Brand	Lenco
Primary Construction	Stainless Steel 304
Contents	2 Stainless steel blades, 2 actuators, 2 actuator extension harnesses, 2 upper mounting brackets, 2 lower mounting brackets & manual
Thickness	Blade: 2.7mm (12 Gauge)
Boat Size	17' - 30'
