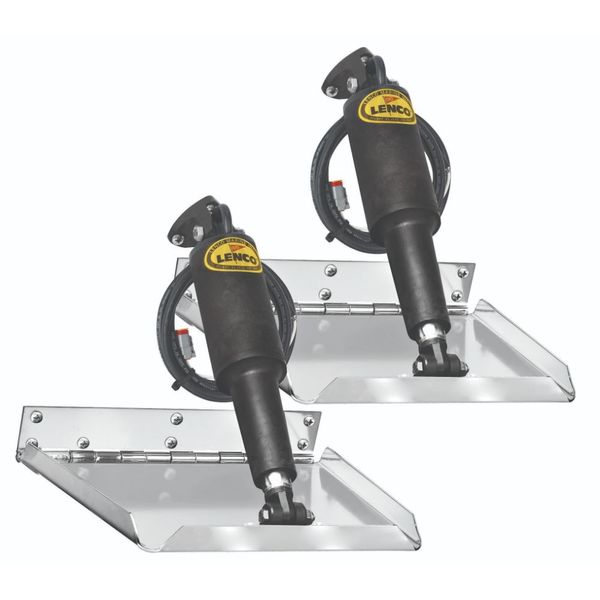

Lenco Stainless Steel Trim Tab Kit 12V (18"x14", Standard Performance)



Part No: 4-46566

Lenco's first trim tab series designed specifically for performance. Lenco 15040-101 system comes equipped with a thicker reinforced hinge and complimented with an electro-polished finish for added quality and protection. Boat lengths 22' (6.7m) to 40' (12.2m).

Blades are constructed of electro-polished 12 gauge (2.7mm) laser cut 304 stainless steel with 1" (2.5 cm) turned up edges and a 5 degree taper on the inside, heavy duty hinge with 1/4" (6.4mm) diameter hinge pin.

Hinge Height: 2" (5.1 cm)

Min.Transom Height: 11" (27.9 cm)

Kit Contents:

2 x 12-gauge stainless steel Electro-Polished blades

2 x Lenco 15054-001 actuators with 6' (1.8 m) leads & Deutsch connectors

2 x Lenco 30133-103 actuator extension wiring harnesses - 20' (6.1 m) length

2 x Lenco 15085-001 upper mounting brackets with gland seal

2 x Lenco 50014-001 lower mounting brackets

Lenco owner's/installation manual

Stainless steel mounting hardware



Application	Boats 22' - 40'
Height Description	Hinge: 2" (5.1cm), Transom: 11" (27.9cm) minimum
Length	457mm (18")
Material	Electro-Polished 304 Stainless Steel
Size	18" x 14"
Voltage Description	12V DC
Width	355mm (14")
Brand	Lenco
Primary Construction	Stainless Steel 304
Suitable For	Vessels under 12 Metres / 39.4 feet|Vessels under 7 Metres / 22.9 feet
Contents	2 Electro-Polished stainless steel blades, 2 actuators 12V, hardware & manual
Thickness	Blade: 2.7mm (12 Gauge)
