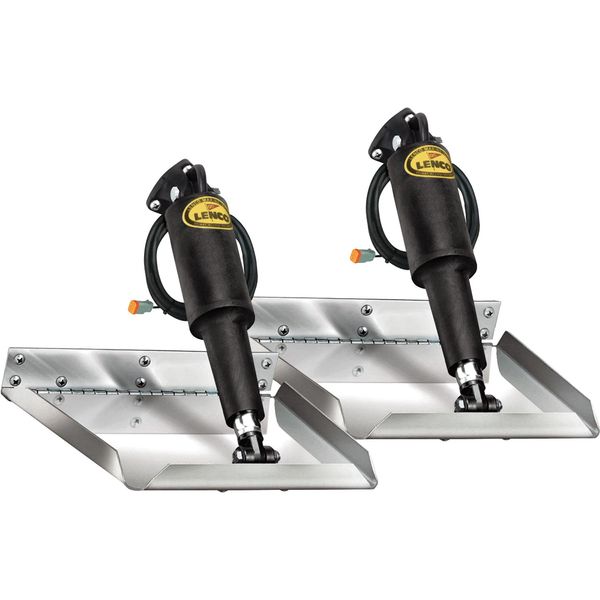

Lenco Electro-Polished Trim Tab Kit (Edge Mount / 12" x 12")

Part No: 4-46624

Lenco 15116-101 has all the same features of the Edge Mount series with the addition of Electro-Polished blades. Electro-Polish adds a mirror finish and the ultimate corrosion protection. Actuator mounts at the trailing edge of these 12" (30.5 cm) blades giving them a 3" (7.6 cm) lower mounting height. Boat Lengths 17' (5.18 m) to 30' (9.14 m). Blades are constructed of Electro-Polished 12 gauge (2.7 mm) laser cut 304 stainless steel with a 1" (2.5 cm) turned up edges and a 5 degree taper on both sides to the trailing edge & 1/8" (3.2 mm) diameter hinge pin. Upper and lower high impact corrosion proof mounting brackets with mechanical cable gland seal.

Lenco trim tab kit contents:

- 2x 12-gauge stainless steel Electro-Polished blades

- 2x 15054-001 12-Volt actuators with 6' (1.8 m) leads and Deutsch connectors

- 2x 30133-103 actuator extension wiring harnesses - 20' (6.1 m) length

- 2x 15085-001 upper mounting brackets with gland seal

- 2x 50014-001 lower mounting brackets

- Lenco owner's/installation manual

- Stainless steel mounting hardware
