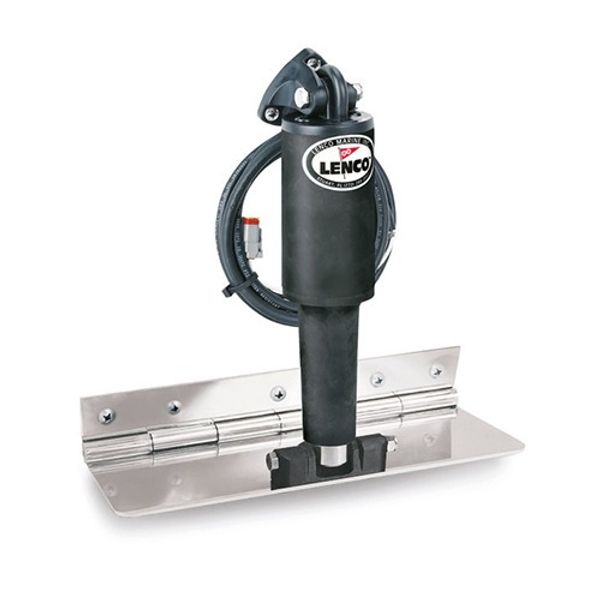

Lenco Compact Trim Tab Kit with XDS Actuators (4" x 12" / Standard)



Part No: 4-46578

Lenco 15052-101 is engineered to fit behind ladders. With two styles to choose from, this unique design gives you all the benefits of a standard tab in an ultra compact design. Boat lengths 14' (4.3m) to 25' (7.6m).

Blades are constructed of a stronger 11-gauge laser cut 304 stainless steel and 3/8" (9.5mm) diameter hinge pin. Upper and lower high impact corrosion proof mounting brackets with mechanical cable gland seal.

All LS Trim Tab Kits include:

2 x 11-gauge stainless steel blades (standard finish)

2 x actuators with 6' (1.8m) lead and Deutsch connectors

2 x actuator extension wiring harnesses - 20' (6.1m) length

2 x upper mounting brackets with gland seal

2 x lower mounting brackets

Lenco owner's/installation manual

Stainless steel mounting hardware

Please note: Switch kits sold separately



Height Description	Hinge:2" (5.1cm), Min transom height: 13" (33cm)
Length	102mm (4")
Material	Stainless Steel 304
Size	4" x 12"
Voltage Description	12V DC
Width	305mm (12")
Brand	Lenco
Primary Construction	Stainless Steel 304
Contents	2 Stainless steel blades, 2 actuators, 2 actuator extension wiring harnesses, 2 upper & lower mounting brackets, hardware & manual
Thickness	Blade: 2.9mm (11 Gauge)
