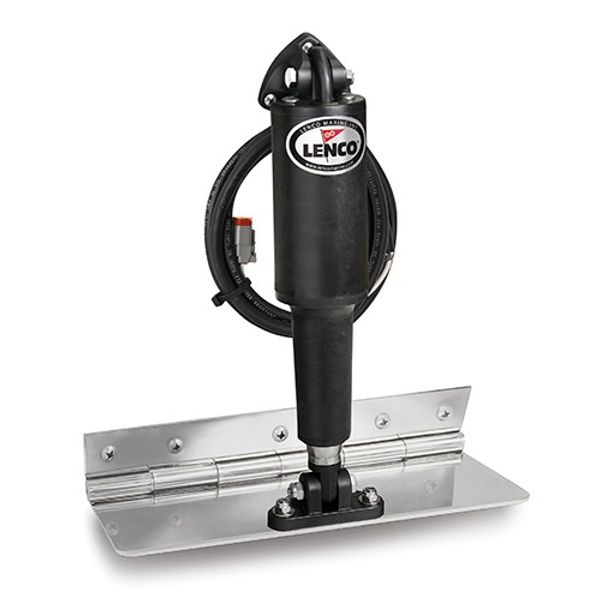

Lenco Compact Trim Tab Kit with Actuators (4" x 12" / Standard Finish)



Part No: 4-46628

Lenco 15125-101 is engineered to fit behind ladders. With two styles to choose from, this unique design gives you all the benefits of a standard tab in an ultra compact design. Boat lengths 14' (4.3m) to 25' (7.6m).

Blades are constructed of a stronger 11-gauge laser cut 304 stainless steel and 3/8" (9.5mm) diameter hinge pin. Upper and lower high impact corrosion proof mounting brackets with mechanical cable gland seal.

All LS Trim Tab Kits include:

- 2x 11-gauge stainless steel blades (standard finish)

- 2x actuators with 6' (1.8m) lead and Deutsch connectors

- 2x actuator extension wiring harnesses - 20' (6.1m) length

- 2x upper mounting brackets with gland seal

- 2x lower mounting brackets

- Lenco owner's/installation manual

- Stainless steel mounting hardware

Switch kits sold separately



Application	Boats 14' to 25' (4.3m - 7.6m)
Height Description	Hinge 2" (5.1cm), Transom: 14.5" (36.8cm) minimum
Length	102mm (4")
Material	Stainless Steel 304
Size	4" x 12"
Voltage Description	12V DC
Width	305mm (12")
Brand	Lenco
Primary Construction	Stainless Steel 304
Suitable For	Vessels under 12 Metres / 39.4 feet|Vessels under 7 Metres / 22.9 feet
Contents	2 stainless steel blades, 2 actuators, 2 actuator extension wiring harnesses, 2 upper & 2 lower mounting brackets, owner/installation manual, mounting hardware
Thickness	Blade: 2.9mm (11 Gauge)
