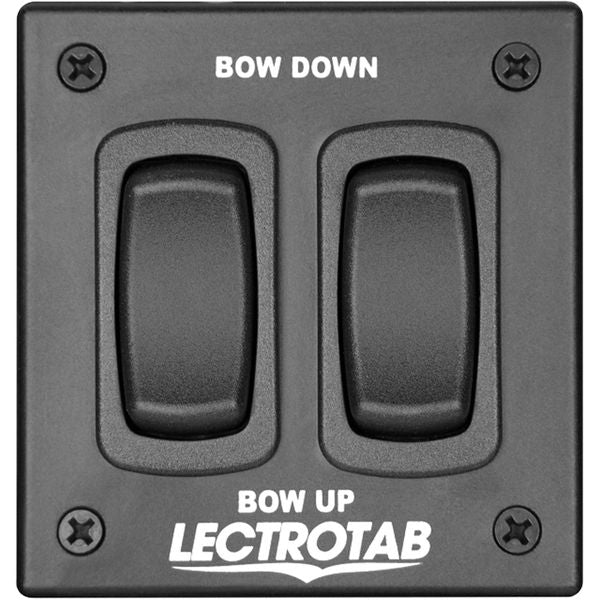

Lectrotab Flat Rocker Control Panel (12V & 24V / Single Station)
Lectrotab Flat Rocker Control Panel (12V & 24V / Single Station)
Limited Stock - Call 01484 482269
Lectrotab Flat Rocker Control Panel (12V & 24V / Single Station)
Part No: 616950
The Lectrotab trim tab control panel features two flat rocker switches. The switch panel has a black semi-gloss finish. The Lectrotab trim tab control panel offers a basic 'up and down' functionality with switches that are also available individually. The panel is suitable for single station installations and can control up to 2 actuators per tab (at 12V) or 4 actuators per tab (at 24V).
This rocker switch control panel is gasket sealed to prevent water entry and also meets military standard 202F for salt spray. The control panel is specifically designed to prevent actuator over-run with its 'instant stop' circuit. All components are self-contained and do not require an additional control panel.
Lectrotab reference: SAF-SC (replaces SAF-S).
Approvals
Meets Military Standard 202F for Salt Spray
Cut Out
57mm x 51mm (2-1/4" x 2")
Fuse
1 Actuator = 20A @ 12V and 10A @ 24V, 2 Actuators = 30A @ 12V and 20A @ 24V, 3 Actuators = 30A @ 24V, 4 Actuators = 40A @ 24V
Height Description
Overall: 82.5mm (3-1/4")
Voltage Description
12V - 24V DC
Brand
Lectrotab
Style
Flat Rocker Control
Colour
Black
Country of Origin
United States
Number of Stations Description
Single Station
Replaces
Lectrotab SAF-S Control Panel
Share
View full details
Lectrotab Flat Rocker Control Panel (12V & 24V / Single Station)
Part No: 616950
The Lectrotab trim tab control panel features two flat rocker switches. The switch panel has a black semi-gloss finish. The Lectrotab trim tab control panel offers a basic 'up and down' functionality with switches that are also available individually. The panel is suitable for single station installations and can control up to 2 actuators per tab (at 12V) or 4 actuators per tab (at 24V).
This rocker switch control panel is gasket sealed to prevent water entry and also meets military standard 202F for salt spray. The control panel is specifically designed to prevent actuator over-run with its 'instant stop' circuit. All components are self-contained and do not require an additional control panel.
Lectrotab reference: SAF-SC (replaces SAF-S).
| Approvals | Meets Military Standard 202F for Salt Spray |
| Cut Out | 57mm x 51mm (2-1/4" x 2") |
| Fuse | 1 Actuator = 20A @ 12V and 10A @ 24V, 2 Actuators = 30A @ 12V and 20A @ 24V, 3 Actuators = 30A @ 24V, 4 Actuators = 40A @ 24V |
| Height Description | Overall: 82.5mm (3-1/4") |
| Voltage Description | 12V - 24V DC |
| Brand | Lectrotab |
| Style | Flat Rocker Control |
| Colour | Black |
| Country of Origin | United States |
| Number of Stations Description | Single Station |
| Replaces | Lectrotab SAF-S Control Panel |
