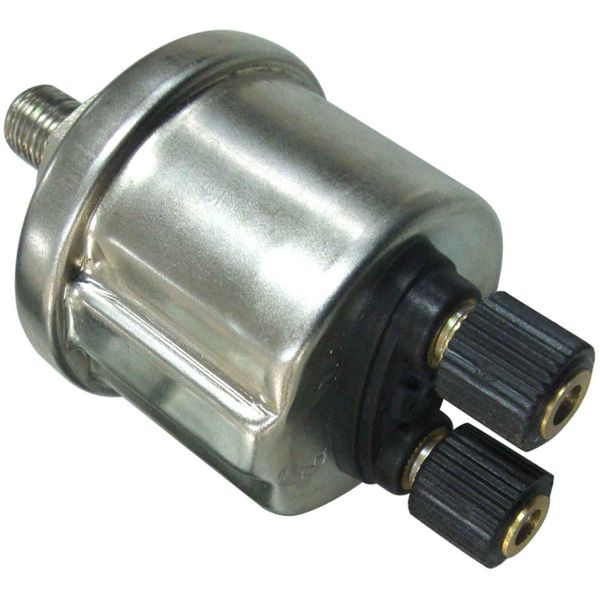

KUS Oil Pressure Sender with Alarm (10 bar, Euro Resistance, M10 x 1)

Part No: KE21107

The KUS oil pressure sender with alarm is European resistance and suitable for use with European resistance oil pressure gauges.

The KUS oil pressure sender is threaded M10 x 1 and works with both 12V and 24V DC electrical systems, for alternative threaded systems please order appropriate threaded sender adaptor.

The sender features excellent anti-vibration performance, long service life, simple assembly process and stable quality.

Single station oil pressure sender is suitable for operating one oil pressure gauge, for dual gauge operations order a dual station oil pressure sender.

The KUS standard earth oil pressure sensor is earthed through the engine block.

This oil pressure sender measures up to 10 bar and the alarm is set at 1.4 bar (+/-0.2 bar).

This pressure alarm sender is ideal for marine use, but may also be used in the following applications: the engine pipe of vehicles, water processing projects, inspection and control of industrial processes, hydraulic and pneumatic control projects.

Alarm: 1.4 bar (+/-0.2)

Protection Rating: IP66

Measuring Range: 0 to 10 Bar

Output Resistance: 10-184 ohms

White Zinc Plated Body

Conducting Power: less than 5W

Operating Temperature: -25 to +120°C (120°C Max 1 hour)

Connection: 2 x Knurled nut (G M4 & WK M4)
