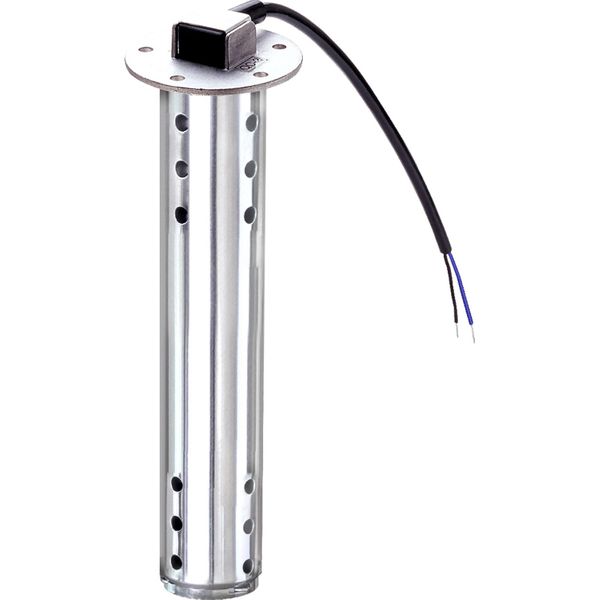

The KUS single station level sender is European resistance and suitable for use in waste water tanks (black or grey water) and fresh water tanks. The dip level sender features a stainless steel 316 body, an NBR rubber gasket and a PVC covered wire. Sender uses magnetic field to control the on-off switch and features a long service life and vibration protection. The sender has a protection rating of IP67.

Single station level sender is suitable for operating one level gauge, for dual gauge operations order a dual station level sender.

Resistance Output: 0 to 190 ohms

Power Rating: 125mW

Resolution range: 10mm to 40mm

KUS Part Number: JKS05106 / S5HT-E650

When fitting this sender you may also need the JS21880 SAE 5 flange (sold separately) depending on your application.
