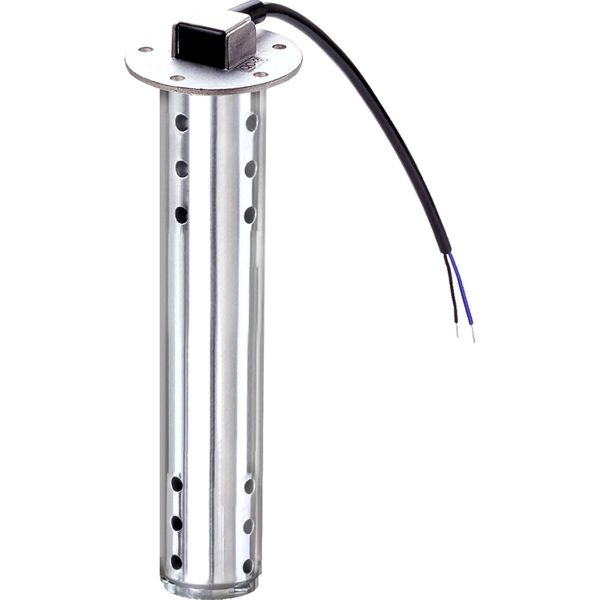

KUS Dip Level Sender 400mm (Euro Resistance)
KUS Dip Level Sender 400mm (Euro Resistance)
Couldn't load pickup availability
Limited Stock - Call 01484 482269
KUS Dip Level Sender 400mm (Euro Resistance)
Part No: JKS00100
The KUS single station level sender is European resistance and suitable for use in waste water tanks (black or grey water) and fresh water tanks. The dip level sender features a stainless steel 316 body, an NBR rubber gasket and a PVC covered wire. Sender uses magnetic field to control the on-off switch and features a long service life and vibration protection. The sender has a protection rating of IP67.
Single station level sender is suitable for operating one level gauge, for dual gauge operations order a dual station level sender.
Resistance Output: 0 to 190 ohms
Power Rating: 125mW
Resolution range: 10mm to 40mm
KUS Part Number: JKS00100 / S5HT-E400
When fitting this sender you may also need the JS21880 SAE 5 flange (sold separately) depending on your application.
Application
Waste Water (Black or Grey Water) and Fresh Water
Length
Sender: 400mm, Wire: 460mm
Operating Temperature
-40°C to +85°C
Type
Waste & Water Level Senders
Voltage Description
12V - 24V DC
Brand
KUS
Gauge Sender Resistance
European
Number of Stations
Single Station
Suitable For
Waste Water|Drinking Water
Bolt Hole PCD Description
SAE Standard 5 Hole
Number of Stations Description
Single Station (Works 1 Gauge)
Amps Description
500mA
Share
View full details
KUS Dip Level Sender 400mm (Euro Resistance)
Part No: JKS00100
The KUS single station level sender is European resistance and suitable for use in waste water tanks (black or grey water) and fresh water tanks. The dip level sender features a stainless steel 316 body, an NBR rubber gasket and a PVC covered wire. Sender uses magnetic field to control the on-off switch and features a long service life and vibration protection. The sender has a protection rating of IP67.
Single station level sender is suitable for operating one level gauge, for dual gauge operations order a dual station level sender.
Resistance Output: 0 to 190 ohms
Power Rating: 125mW
Resolution range: 10mm to 40mm
KUS Part Number: JKS00100 / S5HT-E400
When fitting this sender you may also need the JS21880 SAE 5 flange (sold separately) depending on your application.
| Application | Waste Water (Black or Grey Water) and Fresh Water |
| Length | Sender: 400mm, Wire: 460mm |
| Operating Temperature | -40°C to +85°C |
| Type | Waste & Water Level Senders |
| Voltage Description | 12V - 24V DC |
| Brand | KUS |
| Gauge Sender Resistance | European |
| Number of Stations | Single Station |
| Suitable For | Waste Water|Drinking Water |
| Bolt Hole PCD Description | SAE Standard 5 Hole |
| Number of Stations Description | Single Station (Works 1 Gauge) |
| Amps Description | 500mA |
