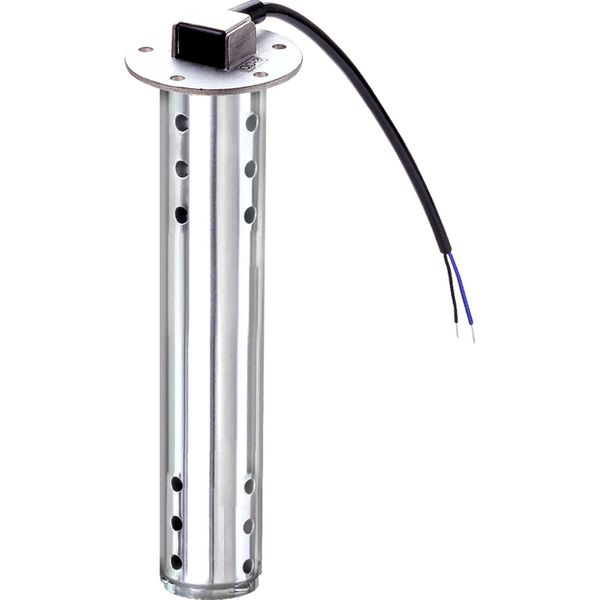

KUS Dip Level Sender 275mm (Euro Resistance)

Part No: JKS00097

The KUS single station level sender is European resistance and suitable for use in waste water tanks (black or grey water) and fresh water tanks. The dip level sender features a stainless steel 316 body, an NBR rubber gasket and a PVC covered wire. Sender uses magnetic field to control the on-off switch and features a long service life and vibration protection. The sender has a protection rating of IP67.

Single station level sender is suitable for operating one level gauge, for dual gauge operations order a dual station level sender.

Resistance Output: 0 to 190 ohms

Power Rating: 125mW

Resolution range: 10mm to 40mm

KUS Part Number: JKS00097 / S5H-E275

When fitting this sender you may also need the JS21880 SAE 5 flange (sold separately) depending on your application.
