KUS Combination Gauge in Black (4 in 1 Gauge / 3.4")

Part No: JMV00356

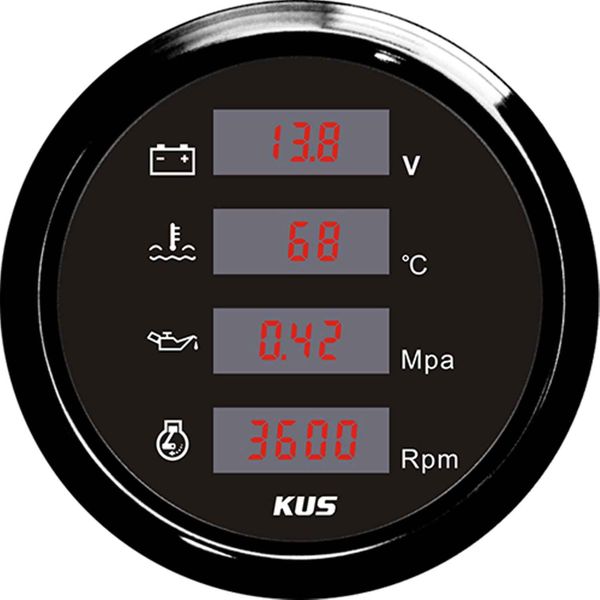

The KUS digital combination gauge features a black stainless steel 316 bezel, black dial, white graphics and red digital numbers displaying Voltage, Water Temperature, Oil Pressure and RPM, with red or yellow back lighting and a convex double layer reinforced anti-fogging glass lens.

The KUS digital 4 in 1 gauge combines a Voltmeter, Water Temperature Gauge, Oil Pressure Gauge and Tachometer. The digital display shows the voltage to 1 decimal place, the water temperature to the nearest 1°C, the oil pressure (Mpa) to 2 decimal places and the revolutions per minute (RPM) to the nearest whole revolution.

KUS Sea V series gauges have an IP67 protection rating for the entire gauge and can work up to 1 metre underwater. They also feature an easy installation multi-plug socket connection design.

Input Signal:

- Water Temperature: 310 - 20 ohms

- Oil Pressure: 10 - 184 ohms

- Tachometer Ratio: 0.5 - 250.0

Display Range:

- Voltmeter: 9 - 32V

- Water Temperature: 20 - 120°C

- Oil Pressure: 0 - 1mpa

• Tachometer: 0 - 6000 RP

Specifications:
