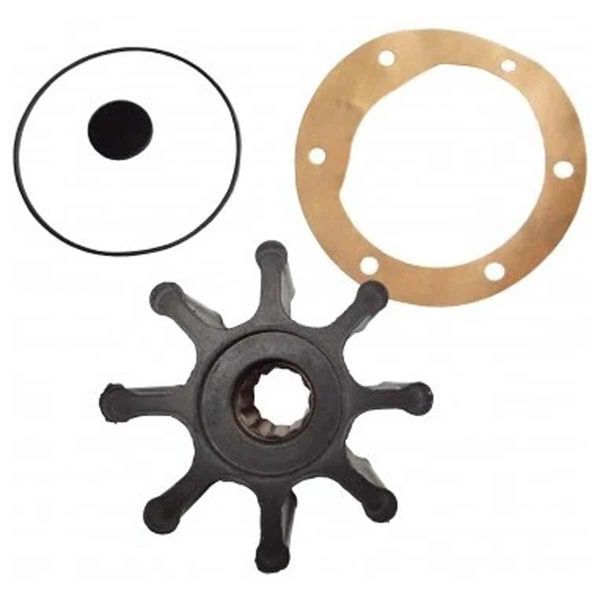

Johnson Neoprene Pump Impeller for Johnson F7B Pumps (8 Blade)

Part No: 09-1028B-1A

The genuine Johnson neoprene flexible impeller is suitable for general water-pumping duties such as engine cooling, water transfer, wash down and bilge water pumping purposes. The Johnson flexible pump impeller has eight blades and is supplied complete with gaskets, O-ring, lubrication gel and instruction manual to aid installation of the impeller into the flexible impeller pump.

The Johnson 09-1028B-1 flexible pump impeller is designed to be installed to some of the F7 range of Johnson Pumps, including the following:

- F7B-3 pumps (10-22045-1 & 10-22054-1), F7B-3000, F7B-3020 & F7B-3030 pumps (10-24209-1, 10-24209-3 & 10-24209-5), F7B-30007, F7B-30207 & F7B-30307 pumps (10-24209-7, 10-24209-9 & 10-24209-11)

- F7B-5 pumps (10-22342-), F7B-5000, F7B-5001, F7B-5001 MC & F7B-5007 pumps (10-24071-99, 10-24116-98, 10-24116-99, 10-24556-01, 10-24577-13, 10-24577-99 & 10-24578-03), F7B-50017 & F7B-50017 MC pumps (10-24071-98, 10-24556-02, 10-24577-19 & 10-24578-04)

- F7B-8 pumps (10-24070-1, 10-24070-9, 10-24070-10, 10-24572-01, 10-24572-13, 10-24572-53 & 10-24572-54), F7B-803 pumps (10-24070-3, 10-24572-05 & 10-24572-17), F7B-8001, F7B-8007 & F7B-8037 pumps (10-24070-5, 10-24070-7, 10-24070-51, 10-24114-1 & 10-24572-51)

- Johnson F7B-9 pumps (10-13064-1, 10-13064-2, 10-13142-01, 10-13142-02, 10-13374-01, 10-21876-1, 10-22144-1, 10-22335-3, 10-22354-1, 10-24014-7, 10-24020-1, 10-24020-2, 10-24061-1, 10-24061-3, 10-24103-1, 10-24126-2, 10-24127-1, 10-24139-1, 10-24139-3, 10-24139-5, 10-24139-7, 10-24179-1, 10-24235-1, 10-24235-3, 10-24244-1, 10-24253-2, 10-24253-3, 10-24277-1, 10-24277-3, 10-24277-5, 10-24280-2, 10-24338-01, 10-24338-02, 10-24349-01, 10-24365-01, 10-24365-02, 10-24386-01, 10-24390-01, 10-24394-01, 10-24394-03, 10-24398-01, 10-24398-02, 10-24428-01, 10-24431-01, 10-24445-01, 10-24524-01, 10-24524-02, 10-24524-03, 10-24524-04, 10-24524-05, 10-24535-01, 10-24580-01, 10-24599-01, 10-24621-01, 10-24630-01, 10-24630-02, 10-24637-01, 10-24666-01, 10-24666-02, 10-24667-01, 10-24748-01 & 10-24753-01), F7B-902 pumps (10-11236-3, 10-24061-2, 10-24061-4, 10-24127-3, 10-24253-1, 10-24277-2, 10-24277-4, 10-24394-02 & 10-24475-01), F7B-903 pumps (10-11236-2, 10-21876-2, 10-22139-1, 10-22147-1, 10-22335-2, 10-22335-4, 10-22354-2, 10-24017-1, 10-24017-2, 10-24017-3, 10-24017-4, 10-24028-1, 10-24048-1, 10-24057-1, 10-24103-2, 10-24126-1, 10-24126-3, 10-24127-2, 10-24139-2, 10-24139-4, 10-24179-2, 10-24218-1, 10-24235-2, 10-24244-2, 10-24280-1, 10-24305-01, 10-24329-11, 10-24475-02, 10-24542-01, 10-24567-01 & 10-24654-01), F7B-9000, F7B-9001, F7B-9002 & F7B-9030 pumps (10-24014-1, 10-24014-2, 10-24014-3, 10-24014-4, 10-24014-5, 10-24014-6 & 10-24183-1)

The Johnson 09-1028B-1 can be used to replace the Jabsco 17937-0001 and 920-0001 Europe and USA flexible impellers as well as the Sherwood 18200 impeller. For applications containing diesel or light oils, use Johnson nitrile impeller 09-1028B-9.

Engine Suitability for the Johnson 09-1028B Impeller:

- Bayliner 105, W04C-T120/3000, W04D & W06D-T1 250/3000 engines (10-24253-1, 10-24365-02 & 10-24253-2)

- Beta Marine BSD 333, BSD 678, Dover 2725, Dover 2726 T & Dover 2726 TIM engines (10-24139-4 & 10-24244-1)

- Bomac Marine 6 cyl engines (10-24139-5)

- Bukh 4K 105M & 6K 105M engines

- C-Power 2500, 2720, 6.675, 2722-series 4 cyl, 2725-series 6 cyl, 4.254, 4.444, 6.216, 6.363TC/TCIC, 6.380, 6.666, BSD 31, BSD 4 & BSD 6 cyl engines (10-24139-1, 10-24139-4, 10-24244-1 & 10-24445-01)

- Caterpillar 3208 engines

- Cummins V504M engines

- Dolphin Marine 2726TIM 6 cyl, 2726TM 6 cyl, Adhara, FSD 2.5, Super Saiph II, Super Saiph 3 & Vega engines (10-24070-1, 10-24139-1 & 10-24139-3)

- Ford 2723, 2725, 2700 Turbo, 2704ET, 2726T, 2726TIM, 2726TM, 2728TIM, BSD333, BSD444 & BSD666 engines (10-24139-1, 10-24139-3 & 10-24244-1)

- Herald Marine 6.150, 6.170, 6.178T & Magnum 300 engines (10-24014-1)

- High Power Marine 2715E engines (10-24139-1)

- Marine Craft 2653-5E HC engines (10-24070-1)

- Mercedes OM352, OM355, OM360, OM401 & OM402 engines (10-24209-1)

- Mercraft 150 & 180 engines (10-24139-1)

- Mercury Marine 4 cyl engines (10-24253-1)

- Mermaid Marine 397, 595, 2722 4 cyl, 2723 4 cyl, 2724 4 cyl, 2725 4 cyl, 2726 6 cyl, 2727 6 cyl, 2728 6 cyl, 595 TP, Flat Four, Flat Six, Majestic, Manta, Mariner, Melody, Mistral, Monarch, Turbo Four & Turbo Plus engines (10-24139-1 & 10-24139-4)

- Nanni 4.220 HE, 4.230, 4.240, 4.380, 5250 TDi, 5.280 HE, 5.300 T, 6.280 HE, 6.570 6 & 6.570 T engines (10-24070-3, 10-24179-1, 10-24179-2, 10-24386-01 & 10-24542-01)

- Norfolk Marine 2723 engines (10-24139-3)

- Perkins 6.305 6 cyl, 6.354 6 cyl, 6.354DM, 6.3540M, 6.3543M, 6HD 135/15D & T/H/HT 6.354LL engines (10-24014-1 & 10-24014-4)

- Sea Wasp SW 18400- 23 KVA, LATE SW 20000- 25 KVA-, LATE SW 24000-30 KVA-, SW 36000- 45 KVA- & SW 42000- 52.5 KVA- engines (10-24127-1)

- Tempest 0.208, 6.150, 6.180 & Sea Lord 5.66 engines (10-24014-, 10-24139-1 & 10-24139-2)

- Thornycroft 230, 238, T238, 345, 358, T358, TA 358, 360, 360/l, T360/1, 400 & T400 engines (10-24014-1, 10-24139-1, 10-24329-1 & 10-24329-11)

- Vetus C4, C6, DT(A)43, DT(A)44, DT(A)64, DT(A)66, DT(A)67 & P 4.25 engines (10-24218-1, 10-24734-04 & 10-24734-05)

- Volvo Penta 1113 BR, AD31A, AD31B, AD41A, AD41B, AQ40DP, AQ70D, AQAD30A, AQAD31A, AQAD41A, AQD19, AQD27, AQD29, AQD30, AQD30DP, AQD32A, AQD40A, AQD41A, AQD70B, AQD70C, AQD70D, D4, D41A, D41B, IPS350, IPS400, KAD42A, KAD42P, KAD42DP, KAD42DPK, KAMD42A, KAMD42P, MD19, MD27, MD29, MD30, MD30A, MD31, MD31A, MD32A, MD40A, MD42, MD47A, MD47B, MD47C, MD50A, MD67C, MD70A, MD70B, MD70C, MD96B, MD100B, TAMD30, TAMD30A, TAMD31, TAMD31A, TAMD31B, TAMD41, TAMD41A, TAMD41B, TAMD60, TAMD60A, TAMD60B, TAMD60C, TAMD70, TAMD70B, TAMD70C, TAMD70D, TAMD70E, THAMD70, THAMD70B, THAMD70C, TIMD96B, TMD30A, TMD31, TMD31A, TMD31B, TMD40A, TMD40B, TMD40C, TMD41A, TMD41B, TMD60B, TMD70B, TMD70C & TMD100A engines (10-11236-1, 10-11236-2, 10-22144-1, 10-22335-1, 10-22335-2, 10-24017-1, 10-24020-1, 10-24277-1 & 10-24394-01)

- Watermota Sea Ranger 125, Sea Lion 140, Super Lion 170 & Super Lion 240 engines (10-24139-4 & 10-24445-01)

- Yanmar 4LH-TE, 4LH-HTE, 4LH-DTE, 4BY (1997), 6BY (1997) & 4LH (1997) engines (10-13374-01 & 10-24535-01)

It is highly recommended to make sure you use an original pump impeller for your flexible impeller pump as this will ensure that the quality complies with the performance and dimension requirements for each pump type. Johnson Pump impellers are manufactured in strict compliance with the pump specifications set by the engine manufacturers.

This impeller is also fits engines: Ailsa Craig RF4, RK-Series, RA6, RAB6 (10-24070-1, 10-24014-1, 10-24209-1), Allis Chalmers 60-AMR-273 (10-24070-1), American Diesel 6 cyl (10-24139-5), Bedford 330 (10-24209-1), BMW B 190/220, B 630/635, D 150/190, D 530TA, D 636TA (10-24127-1), Burioli 2725, 2726 TM, 2728 TIM (10-24139-3), CMD ATM100, HPE170, HPE200, HPE250 (10-24572-01, 10-24127-1), CT Marine CT 150, Dover 2725 (10-24139-1), DAF DP 680M, DS 575M, DT 575MY, DT 615MY (10-24209-1), Diecon ED 6, FE6 (10-24277-3, 10-24127-1D), John Deere 4039D, 4045T, 4045DFM70, 4045TFM75, 6068TFM75, 6068TFM76, PowerTech 4.5L, Powertech 6.8L (Johnson 10-24398-01, 10-24398-02, 10-24428-01 & 10-24753-01, John Deere RE47016, RE49556, RE503068, RE525563), Drinkward Motoren DA475, DD575, DF615, OM352, OM352A, OM616, OM617 (10-24070-1, 10-24127-1, 10-24209-1), Dieseltechniek DTN X6M 88A, Ekstroem 4 DQ50, S4E2, S6E2 (10-24127-1), F J Fay F2803EBG (10-24127-10), N Gustavsson Motor 2704ET, 2726TM, 2728TIM (10-24139-3), Hendy Lennox 2720, BSD666TI (10-24139-1, 10-24244-1), Hino Motors W04C-T, W04C-T120/3000, W04D, W06D-T1 250/3000 (10-24253-2, 10-24253-3, 10-24365-02), Indu Marin 2704ET, 2726TM, 2728TIM (10-24139-3), Iveco Aifo 513, 806SM, 8060MSD, 8061M, 8061SM/SRM, 821M, 8210M, 8220M, 8280M/SRM, 8361M/SM, 8361SRM, CO2DM, CO3M, CP3M/SM, OMCP3M (10-24014-1), Kohler 33EFOZ, 40EOZ, 55EFOZ, 65EOZ, 70EFOZ, 80EOZ, 80EFOZ, 99EOZ (10-24753-01), Lister Petter 2722 CS4, 2725 CS6 (10-24139-4), Lombardini LDW 1204 MD, LDW 1204 Turbo, LDW 2004 M, LDW 2004 MD, LDW 2204 MD (10-24475-01, 10-24475-02), Lugger L-6414A (10-24126-2), M.A.N. D 0826LE40 (10-24292-01), JG Meakes JGM 4150D, JGM 6220D (10-24139-1), N.E. Ford 6 cyl (10-24139-5), N.E. Isuzu 6 cyl (10-24070-5, 10-24071-17), Nedalo 2712E, 2715E (10-24139-1, 10-24139-2), Peninsular Engines 8.2L (10-24349-01), Rodahl Marin 2704ET, 2710, 2715, 2722, 2725, 2726, 2728 (10-24139-1), Sabb F 6.363 T, F 6.363 TI, F 6.595T, F 6.595TI, F 6.595TIP (10-24139-1), Sabre 180, 212 (10-24139-1), Schlapkohl DTP75, DTP92, DTP106, SMP 6-cyl (10-22139-1), Schwarting S314, S352, S352A, S636 (10-24070-1, 10-24127-1), Sole Diesel 6 cyl SM120, Steyr MO236-OMC, All 4/6 Cyl. from 1999 (10-24637-01), Telva Oy 2725E, 2726T, 2728TIM (10-24139-1), Valmet Oy 311, 411, 411CM, 411CSM (10-24014-1, 10-24014-2, 10-24014-4), VM Motori 114MH, 116MH, HR 480 HT, HR 488 HT9, HR 492 H9, HR 492 HT9, HR 592 H9, HR 592 HT9, HR 688 HT9, HR 692 H9, HR 692 HT9 (10-24014-1, 10-24127-1), WM Diesel (Kubota) WM 68, WM 85T (V3300, V3300T) (10-24127-1), Vythoulcas D 4Q 50, S4.
