Johnson Neoprene Pump Impeller for Johnson F75, Volvo Pumps (12 Blade)

Part No: 09-821BT-1

The genuine Johnson neoprene flexible impeller is suitable for general water-pumping duties such as engine cooling, water transfer, wash down and bilge water pumping purposes. The Johnson flexible pump impeller is designed to be installed to some of the F75 range of Johnson Pumps which suits the impeller dimensions listed below, including:

- F75B-9 pumps (10-13141-01, 10-13141-02, 10-13142-01, 10-13142-02, 10-13153-01, 10-13170-01, 10-13265-01, 10-13286-01, 10-13306-01, 10-24413-01 & 10-24413-02)

- MAN 51.06500-7023 & 51.06500-7034 pumps

- Yanmar 119578-42501 pumps

- Volvo Penta 3836563 pumps

Johnson 09-821BT-1 replaces Volvo Penta 3825113 and Yanmar 119578-42551 impellers.

The impeller fits the following engines:

- Bayliner / Hino Motors W06D-T1-11 310/3000

- M.A.N. D2866LE/401, D2866LE/401, D2866LE/401 & D2866LE/401/402

- Volvo Penta TAMD63L-A & TAMD63P-A

- Yanmar engines from 1997 onwards: 6LY2 & 6LY3

The Johnson flexible pump impeller has eight blades and is supplied complete with lubrication gel and instruction manual to aid installation of the impeller into the flexible impeller pump.

It is highly recommended to make sure you use an original pump impeller for your flexible impeller pump as this will ensure that the quality complies with the performance and dimension requirements for each pump type. Johnson Pump impellers are manufactured in strict compliance with the pump specifications set by the engine manufacturers.



Application	Johnson F75 Pumps
Material	Neoprene
Brand	Johnson
Primary Construction	Neoprene
Suitable For	Volvo|Yanmar

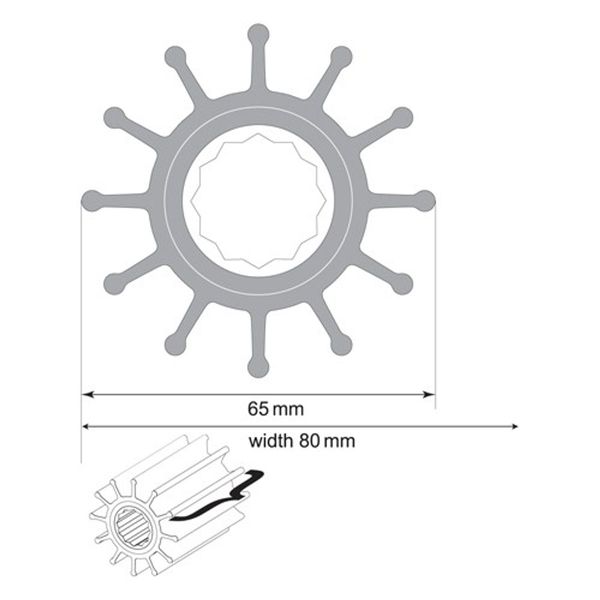

Impeller Shaft Diameter	25.4mm
Number of Impeller Blades	12
Diameter Description	65mm, Shaft 25.4mm
Drive Type Description	Spline Drive
Model	09-821B
Replaces	Volvo Penta 3825113 & Yanmar 119578-42551 Impellers
Depth	80mm (3-1/8")
