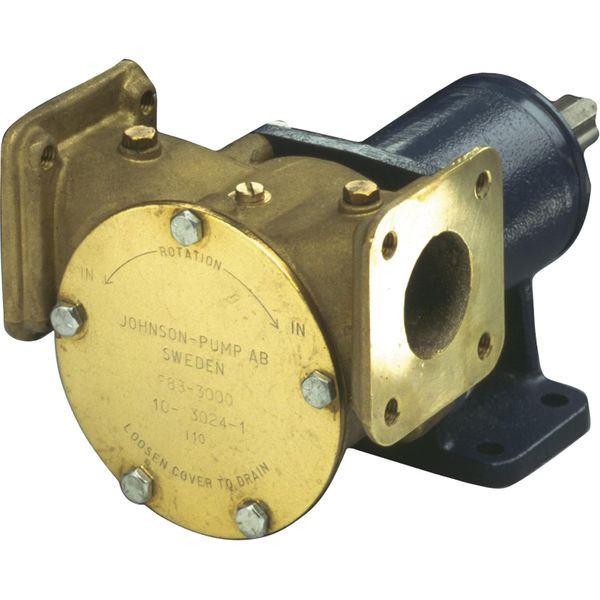

Johnson F8B300 Foot Mounted Engine Cooling Pump (24mm Shaft)

Johnson F8B300 Foot Mounted Engine Cooling Pump (24mm Shaft)

Regular price £1,439.06 GBP
Regular price Sale price £1,439.06 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Johnson F8B300 Foot Mounted Engine Cooling Pump (24mm Shaft)


Part No: 10-13024-1

The Johnson F8B300 heavy duty flexible impeller cooling pump is suitable for marine engine applications and features flanged ports. This pump is pulley driven and foot mounted.

Johnson 10-13024-1 Spare Parts:

Position | Spare Part | Part Number | Quantity

1 | Body | 01-11206 | 1

2 | End Cover | 01-42422-1 | 1

3 | Shaft | 01-35137 | 1

4 | Cam | 01-42680 | 1

5 | Impeller | 08-018B | 1

6 | Gasket | 01-42424 | 1

7 | Pin | 01-42426 | 1

8 | Wearplate | 01-42423 | 1

9 | Pedestal | 01-13020 | 1

10 | Spacer | 01-42747 | 1

11 | Key | 05-03-124 | 1

12 | V-Ring | 05-19-505 | 1

13 | Mech Seal | 05-20-118 | 1

14 | Ball Bearing | 05-08-504 | 2

15 | Retaining Ring | 05-34-118 | 1

16 | Retaining Ring | 05-34-108 | 2

17 | Lip Seal | 05-29-118 | 1

18 | Plug | 05-03-122 | 2

19 | Screw | 05-04-108 | 1

20 | Screw | 16897 | 5

21 | Screw | 05-04-128 | 4

22 | Washer | 05-02-101 | 4

Johnson Pump Diagram





Flow Rate Description 279 LPM at 2000 RPM
Height Description 111.7mm to port centre
Length 255mm
Series F8B-3000-VF
Type Engine Cooling Pumps
Width 152mm
Brand Johnson
Diameter Description Shaft: 24mm
Drive Type Description Pulley Driven
Impeller Fitted JP-09-819B
Model 10-13024-1
Mounting Description Pedestal Mount
Inlet Outlet 1-1/2" Flange (Requires adaptor for 1-1/2" BSP)
