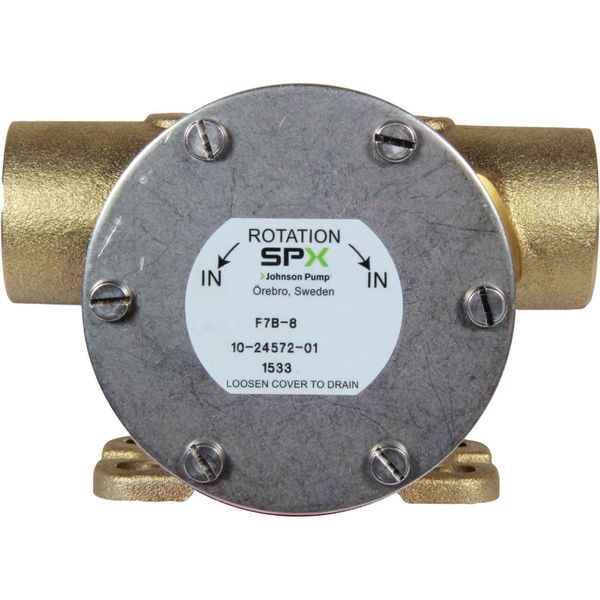

Johnson F7B-8 Foot Mounted Engine Cooling Pump (1" BSP / 17mm Shaft)

Part No: 10-24572-01

Johnson flexible impeller marine engine cooling pump 10-24572-01 fits the following boat engines:

- Volvo Penta MD2030 & MD2040

- CMD ATM100

- Isuzu 4BG1 & 6BG1 Gen-set

This Johnson F7B-8 pump is pulley driven and foot mounted with a 17mm shaft. Replaces Johnson 10-24070-1 (F7B-8), 10-24465-01 (F4B-9), 10-24572-13 (F7B-8), Volvo Penta 3580945 water pumps.

Johnson 10-24572-01 Spare Parts:

Position | Spare Part | Part Number | Quantity

1 | Body | 01-24574-3 | 1

2 | Shaft | 01-46744 | 1

3 | End Cover | 01-46648-3 | 1

4 | Impeller | 08-1028B | 1

5 | Cam | 01-42679 | 1

6 | Pin | 01-42400 | 1

7 | Wear Plate | 01-46798-2 | 1

8 | Washer | 01-45680 | 1

9 | Plate | 01-45047 | 1

10 | Spacer | 01-46009 | 1

11 | Screw | 0.0279.301 | 6

12 | Screw | 01-46794-01 | 1

13 | O-Ring | 0.2172.012 | 1

14 | O-Ring | 0.2173.402 | 1

15 | Ball Bearing | 0.3437.742 | 2

16 | Mechanical Seal | 0.2247.022 | 1

17 | Retaining Ring | 0.0371.040 | 1

18 | External Circlip | 0.0370.017 | 1

19 | External Circlip | 0.0370.516 | 1

20 | Label | 01-46797 | 1



Flow Rate Description	107 LPM at 2000 RPM
Height Description	93mm (3.7")
Length	170mm (6.69")
Material	Bronze Body, Stainless Steel Shaft
Series	F7B-8
Type	Engine Cooling Pumps
Width	120mm (4.72")
Brand	Johnson
Suitable For	Isuzu|Volvo
Diameter Description	Shaft: 17mm (5/8")
Drive Type Description	Pulley Driven
Impeller Fitted	09-1028B
Model	10-24572-01
Mounting Description	Pedestal Mount
Replaces	Johnson F7B-8 (10-24070-1, 10-24572-13) & F4B-9 (10-24465-01), Volvo Penta 3580945
Inlet Outlet	1" BSP Female
