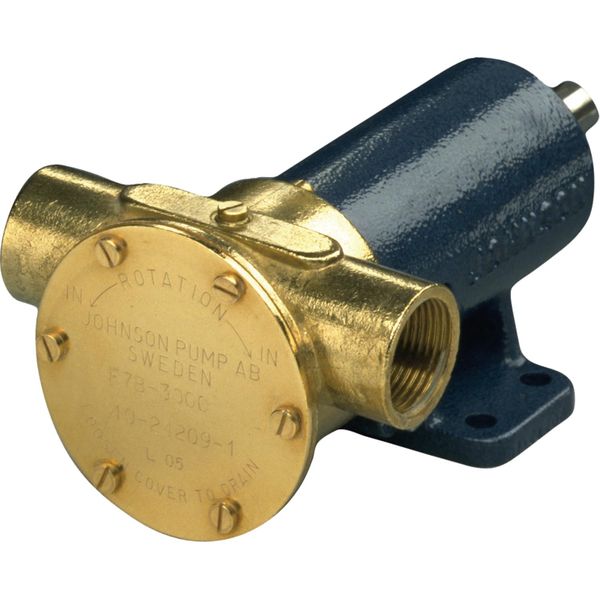

Johnson F7B-3000 Foot Mounted Engine Cooling Pump (1" BSP, 17mm Shaft)

Part No: 10-24209-1

Johnson heavy duty flexible impeller marine engine cooling pump. This F7B-3000 pump is pulley driven and foot mounted with a 17mm shaft.

Suitable for the following marine engines:

- Ailsa Craig RAB6

- Bedford 330

- DAF DT 575MY & DT 615MY

- Drinkward Motoren OM352 & OM352A

- Mercedes OM 352, OM 355, OM 360, OM 401 & OM 402

Johnson water pump replaces Johnson 10-22045-1 F7B-3 pumps.

Johnson 10-24209-1 Spare Parts:

Position | Spare Parts | Part Number | Quantity

1 | Body | 01-21862-2 | 1

2 | Shaft | 01-35177 | 1

3 | Cam | 01-42679 | 1

4 | Impeller | 08-1020-B | 1

5 | End Cover | 01-42441 | 1

6 | Gasket | 01-42446 | 1

7 | Wearplate | 01-42443 | 1

8 | Pin | 01-42400 | 1

9 | Pedestal | 01-24208 | 1

10 | Spacer | 01-45170 | 1

11 | Washer | 01-45174 | 1

12 | Lip Seal | 05-29-503 | 1

13 | V-Ring | 05-19-503 | 1

14 | Mech Seal | 05-20-115 | 1

15 | Retaining Ring | 05-34-105 | 1

16 | Retaining Ring | 05-34-21 | 1

17 | Retaining Ring | 05-34-117 | 1

18 | Screw | 05-04-107 | 1

19 | Screw | 05-04-117 | 6

20 | Screw | 05-04-105 | 1

21 | Washer | 05-01-115 | 1

22 | Nut | 05-05-115 | 1

23 | Ball Bearing | 44779 | 2
